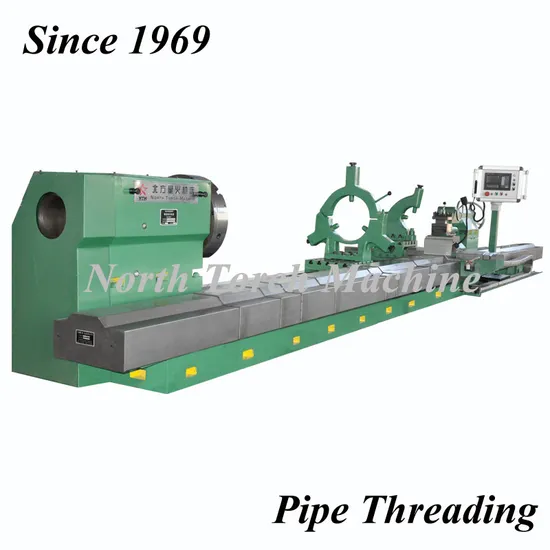

Professional Big Spindle Bore CNC Lathe for Threading Mining and Oil Pipe

Product Description

China Professional Pipe Threading Lathe Machine, Lathe, CNC Lathe Machine, CNC Lathe, 400mm large Spindle bore lathe
For Turning Tapping Threading Oil Pipes,Cylinders,Shaft, Marine Propeller Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,Flange,etc


1. Outstanding Characteristics in making horizontal lathe machine, pipe lathe machine, cnc lathe machine

Our company was established in 1969 as a military enterprise at the beginning. With more than 50 years experience, we are specialized in re-designing and manufacturing customized lathe machines per your special demands and requests.

1). Reasonable Structure and excellent performance.
2.). High Rigidity, Stability and Precision Maintenance
3.) Permanent After-sale Service to ensure maximum customer's profitability.
4.) Engineers are available for over-sea installation,commissioning and Training the operators in customer's factory.
5.) All components for machine are freely provided within 3 days by Air to prevent customer's production suspended and minimum customer 's loss.
6.) The Main machine components are strictly inspected by the advanced CMM to ensure the excellent quality and high precision.
Our company advantages in design and make heavy lathe, lathe machine, pipe threading lathe, cnc lathe machine:
1. We have our foundry which can control the casting parts quality very well. We have professional hardening/quenching furnace used for castings surface treatment to ensure high stability, rigidity and accuracy of horizontal lathe machine.
2. Professional machining equipment such as 12 meters long gantry CNC Grinding Machine, gantry milling machine, CNC Boring Machine, Drilling Machine, Horizontal CNC Lathe Machine for machine main parts like headstock , tailstock, guide rail ,cutting tool carriage, chuck turning
3. Professional technical team to provide both 3D & 2D drawings of horizontal Lathe Machines, roll turning lathe, Facing Lathe Machine, etc to customers after order confirmation and before production. In this designing method, we can make a perfect customized lathe machine for customers.
4. Immediate reply and actions for after-sale service , even after 15 years, we can also provide the easy damaged lathe machine parts and accessories immediately, becaue for each horizontal lathe machine and vertical lathe machines, we have one complete drawings. and we have enough spare parts for each lathe machine in stock.
The following picture is the main part that are inspected .
Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Application: This series CNC horizontal pipe threading lathe can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line. It has both turning and milling functions that can finish machining the part one time, which saves clamping times and improve the working efficiency for customers.

2. Technical Parameters of lathe machine, cnc lathe machine, lathe, pipe turning lathe,

Name		CG61100	CG61125	CG61160	CG61200	CG61250	CG61300
Description	Unit
Max. Swing Over Bed	mm	1000	1250	1600	2000	2500	3000
Max. Swing Over the skateboard	mm	650	800	1200	1650	1800	2800
Max. Weight of Work-piece	T	10	15	20	20	20	40
Max. Length of Work-piece	mm	3000-12000
Gears of Spindle Speed	/	Infinitely Variable Speed/step-less speed
Range of Spindle Speed	r/Min	10-300	10-200	10-160	4-80	4-80	1.6-63
Chuck Diameter	mm	800	1000	1250	1600	2000	2500
X,Z-Axis Feed Range	mm/Min	0-3000
Horizontal Stroke	mm	500	625	800	1000	1250	1000
Longitudinal Stroke	mm	3000-12000
Main Driving Motor	Kw	11	22	45	75	75	75
Cutting Force (Carriage)	Kn	4	6	20	40	40	60
Sleeve Diameter of Tailstock	mm	180	180	290	290	290	480
Spindle Diameter of tailstock	mm	125	125	160	160	160	240

Rermarks:
1. The above 6 models of Heavy Duty Horizontal CNC Lathe Machine are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features. So that when you inquire of our lathe machine, please kindly inform us the Length,Diameter,Width,Weight of work-piece, we can recommend the proper machine. Both Conventional or CNC Control are OK, please laso tell us which type you need when you inquire. Thanks
2. This series heavy duty horizontal CNC Lathe Machine have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
Exported to Colombia used for machining textile pipe, Russia used for turning threading mining oil pipes. etc (With big spindle bore--375 mm 275 mm)
3. Package and Shipment


Anti-rust Oil /Anti-Corrosive Oil for the whole machine. Wrapping protective film.
Wooden Box package, vacumm package is also available per customer's special request.

4. After-sale Service& Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe. We can also extend the warranty period according to customer's special demands.

3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
