High-Precision Hicas Square Wood Multi Rip Saw Machine for Efficient Cutting

Product Description

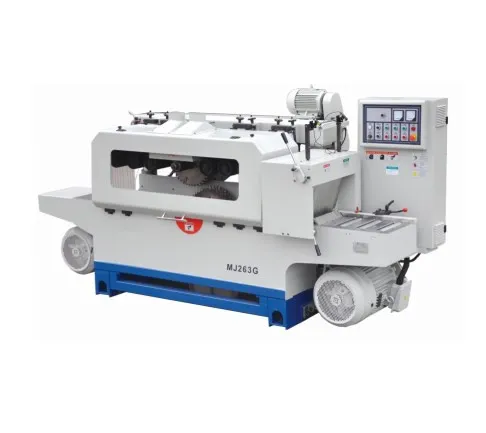

HICAS Square Wood Multi Rip Saw Machine
Product Description
This saw machine is new developed for wet large square wood processing. The saw blade can up and down by manual, then the maximum processing width is 300 mm, the maximum processing thickness is280 mm. To meet the request of smooth feeding and discharging when processing wet wood, we improve the structure of the middle working table, directly adopt upper and lower drum roller feeding structure. It is the ideal equipment for solid wood processing.
Technical Data

Model	MJ263G
Max cutting width	300 mm
Max cutting thickness	280 mm
Min cutting thickness	150mm
Min cutting length	800 mm
Spindle speed	3000 r/min
Feeding speed	3-15 m/min
Spindle diameter	Φ60 mm
Saw blade diameter	Φ305-Φ405 mm
Total motor power	94.75 KW
Upper spindle motor	45 KW
Lower spindle motor	45 KW
Feeding motor	4 KW
Beam lifting motor	0.75 KW
Pressing wheel dimension	Φ140×Φ35×50 mm
Dust collection port diameter	Φ140 mm
Machine's overall size	355×145×180 cm
Machine's net weight	3500 kg

Detailed Photos


Main Features
1) the machine uses the structure of two groups of saw blade processing at the same time, then choose smaller and thinner saw blade according to the wood hardness and thickness.
2) the spindle with special alloy steel and Φ60mm diameter, after repeated heat treatment and precision machining, its performance is stable and high precision.
3) the axis with water cooling structure.
4) machine feeding system equip 7 sets feeding roller, to achieve a strong feed, to ensure the processing of thick material feeding fluency.
5) Upper feeding roller structure adopts the cylinder pressing structure and the segmented pressing material structure and can force adjustment according to the hardness of the wood thickness to ensure smooth feeding.
6) Feeding using frequency converter and cardan shaft transmission structure, feeding speed of 15 m / min.
7) the front of the feed configuration three anti-rebound security guards to ensure that equipment operation more secure.
8) equipped with manual lubrication pump on the important sliding, rotating position, such as columns, slide rails, motor rotation, etc. for centralized supply oil lubrication.
9) equipped with 2 sets of laser marking instrument
Packaging & Shipping
Company Profile
1.15 years experience in chinese woodworking machinery market.
2. 8 years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
7. Customer feedbacks
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
FAQ
1. Do you offer installation? Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. All cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day. 2. Where can we get replacement parts? Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices. 3. How long can we get replacement parts? Common spare parts can be delivered by express within one week. Some parts can be purchased locally. 4. What technical support do you offer? 1) Technical support by phone, email or WhatsApp/Skype around the clock. 2) Friendly English version manual and operation video. 3) Engineer available to service machinery overseas. 5. Can you customized the machine? Our machines can be customized made according to buyers' request. 6. What other machine do you offer? We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like edge banding machine, CNC router, drilling machine, saw machine, roller coater, spraying machine, membrane press can be provided as well. 7. Can you set the system to our language? Our system supports common languages like Chinese, English, Russian. etc.
