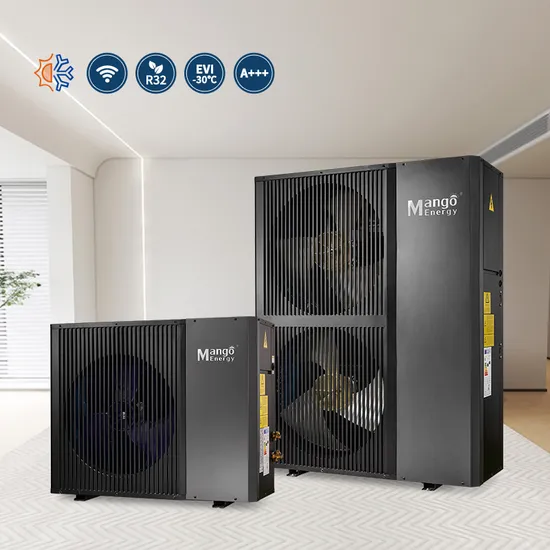

| Name | QII Series DC Inverter Heat Pump |
| Heating Capacity | 9-34kW |
| COP | 2.5-5.6 |
| Warranty | 5 Years Full Unit |
| MOQ | 1 UNIT |
| Model | MGSDC-030IIC | MGSDC-050IIC | MGSDC-060IIC | MGSDC-080IIC | MGSDC-100IIC | |||
| HP | 3HP | 5HP | 6HP | 8HP | 10HP | |||
| Ambient | Outlet | Power Supply | 220-240V / 50-60Hz / 1ph or 380-415V / 50-60Hz / 3ph | 380-415V / 50-60Hz / 3ph | ||||
| +7°C | 45°C | Heating Capacity | kW | 9.65 | 16.45 | 19.90 | 24.90 | 30.90 |
| Power Input | kW | 2.65 | 4.53 | 5.50 | 6.98 | 8.67 | ||
| COP | 3.64 | 3.63 | 3.62 | 3.57 | 3.56 | |||
| +7°C | 35°C | Heating Capacity | kW | 9.00 | 14.00 | 16.00 | 24.00 | 30.00 |
| Power Input | kW | 2.00 | 3.04 | 3.50 | 5.40 | 7.30 | ||
| COP | 4.5 | 4.6 | 4.56 | 4.45 | 4.1 | |||
| -20°C | 41°C | Heating Capacity | kW | 5.79 | 9.55 | 11.80 | 14.52 | 17.45 |
| Power Input | kW | 2.63 | 4.32 | 5.39 | 6.66 | 8.04 | ||
| COP | 2.20 | 2.21 | 2.19 | 2.18 | 2.17 | |||
| -35°C | 41°C | Heating Capacity | kW | 3.42 | 5.68 | 7.39 | 8.80 | 10.92 |
| Power Input | kW | 2.46 | 4.12 | 5.32 | 6.33 | 7.86 | ||
| COP | 1.39 | 1.38 | 1.39 | 1.39 | 1.39 | |||
| -12°C | 41°C | Heating Capacity | kW | 6.85 | 11.44 | 13.50 | 16.52 | 20.61 |
| Power Input | kW | 2.72 | 4.49 | 5.31 | 6.56 | 8.21 | ||
| COP | 2.52 | 2.55 | 2.54 | 2.52 | 2.51 | |||
| +35°C | 7°C | Cooling outlet | kW | 7.62 | 13.18 | 16.21 | 20.51 | 23.80 |
| Power Input | kW | 2.61 | 4.51 | 5.59 | 7.15 | 8.32 | ||
| EER | 2.92 | 2.92 | 2.90 | 2.87 | 2.86 | |||
| Maximum Working Pressure | Bar | 44 Bar | ||||||
| Compressor | - | Panasonic DC Inverter Compressor with EVI System | ||||||
| Refrigerant | - | R32 | ||||||
| Fan Motor | - | Nidec DC Brushless Motor | ||||||
| Controller | - | Touchscreen LCD Controller with WIFI and 13 Languages | ||||||
| Water Heating Exchanger | - | SUS 316 Brazed Plate Heat Exchanger | ||||||
| External Cabinet | - | 1.5MM Galvanized Steel With Powder Coating | ||||||
| EEV | - | Dunan | ||||||
| Outdoor Air Flow | m3 / h | 2600 | 5600 | 5600 | 7800 | 7800 | ||
| Water Flow (Built in Pump) | m3 / h | >1.6 | >3.1 | >3.1 | >3.4 | >3.4 | ||
| Expansion Tank | L | 2L | ||||||
| Water Pipe | inch | 1" | 1" | 1" | 1-1 / 4" | 1-1 / 4" | ||
| Noise in 1M | dB(A) | ≤50 | ≤56 | ≤57 | ≤59 | ≤60 | ||
| Unit size | mm | 925*375*770 | 1050*400*1350 | 1175*400*1482 | ||||
| Net Weight / Gross Weight | Kg | 76 / 85 | 120 / 146 | 125 / 151 | 165 / 194 | 175 / 212 | ||
