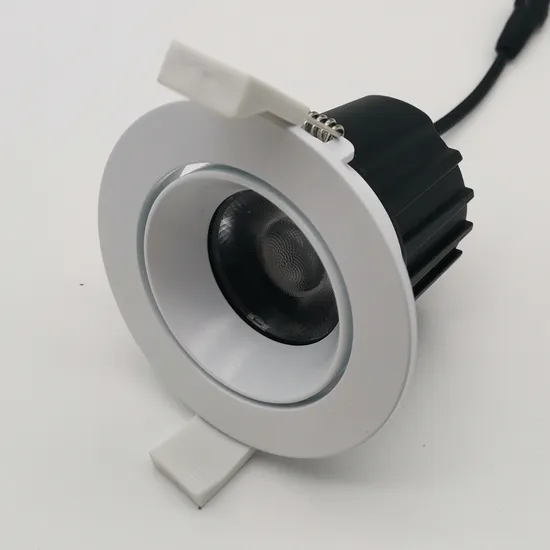

20W Modular SKD Type Beam Adjustable LED Downlight

Product Description

Modular lighting system-Modular Orientable LED downlight
What's modular Orientable downlight?
The Orientable downlight are flexible design, Trim and light module can be changed quickly without tools
Modular Orientable LED downlight, the most important member of modular lighting, has come to markets.
With modular lighting solution, it will be much flexible for your stock and projects,
From now on, you can buy the whole lamps, you can buy trim, light module, driver separately
and quick assemble or replace some accessories within 5 seconds, they will help you save 50% stock
at least and meet clients' various special requirements in shortest time.
The light module can be single color, tunable white, DTW, both SMD and COB version are available,
with modular lighting technology, you will get different light output, different CCT, different CRI,
different beam angle and lumen efficiency, different trim color etc, with our patent design,
you will get very low UGR output,
It is also the best solution for after sales service, if you want to change which item, any body can do it quickly,
no need electrician, can save a lot of time and money.
Size and drawing
What was the advantage?
Buy Modular Orientable downlight as whole fixture
What was the advantage?
Buy different light module
What was the advantage?
Buy different color Trim + Light module
What was the advantage?
Buy various dimmable Driver
What was the advantage?
Easliy get different lighting output
Full Color temperature: on BBL or B.BBL
What was the advantage?
Dark light output, Very low UGR
What's the advantage?
1. 4 way to buy the lamps: A, whole lamps, B, light module + fixture, C, light module or fixture, D, SKD housing
2. Comfortable light output: UGR<19
3. Different colors Trim for different requirements, with modular technology, easy to change,
4. Save stock, save money
5. Ideal for DIY lighting, especially for projects (easy to change the CCT, CRI, Beam angle, lm/W, Dimmable, housing color etc.)
6. Easy for after sales service
7. The housing can be recycle
Modular Orientable downlight family

Product No	Diameter	Cut out	Wattage	Light module	Color	Beam angle
XH-DL-5W-ML	85/90mm	75-80mm	5W	COB	W/DTW/TW	15/24/38/60°
XH-DL-10W-ML			10W	COB	W(white color)	15/24/38/60°
XH-DL-12W-ML			12W	COB	W(white color)	15/24/38/60°
XH-DL-15W-ML	110mm	90-105mm	15W	COB/SMD	W/DTW/TW	15/24/38/60°
XH-DL-20W-ML			20W	COB/SMD	W/DTW/TW	15/24/38/60°
XH-DL-25W-ML			25W	COB/SMD	W(white color)	15/24/38/60°

How modular Orientable downlight work?
1. Buy them as whole fixture
How modular Orientable downlight work?
2. Buy them as whole fixture
How modular Orientable downlight work?
2.1. Choose the right CCT, CRI, Wattage, lens beam angle, light source version etc. of the light module
How modular Orientable downlight work?
2.2. Choose the right trim color
How modular Orientable downlight work?
2.3. Choose the right light module(Color, CRI, Wattage, Beam angle, lm/W etc)
How modular Orientable downlight work?
2.4. Put the light module to trim and turn right
We can also supply you LED track light, LED tube light, LED street light

---
