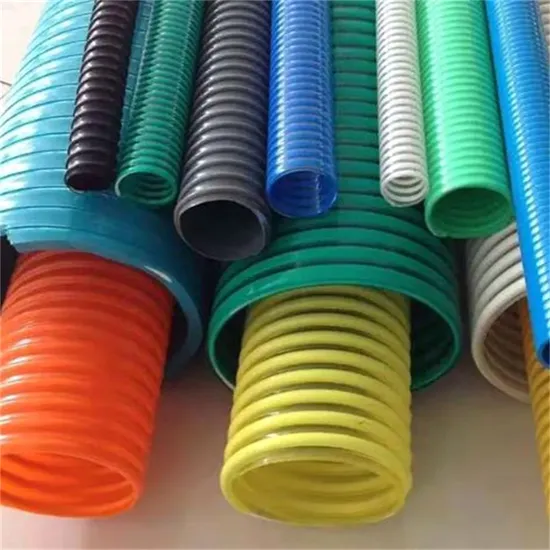

Plastic Reinforced PVC Helix Water Hose Pump Suction Discharge Spiral Suction Hose

Product Description

Product Description PVC Suction Hose PVC suction hose pipes are known for their ability to withstand extreme and high air, liquid, oil and gas pressures. Because it is made from high-quality polyvinyl chloride material and advanced manufacturing techniques, it has excellent resistance to high corrosion and temperature build-up, leak-proof construction, longer service life and excellent flexibility. Available in a variety of patterns, colors, thicknesses and lengths, the PVC suction hose is ideal for use in the oil and gas, pharmaceutical, petrochemical, chemical and related industries. Flexible PVC suction tube with rigid PVC spiral reinforcement that is abrasion, chemical, impact and crush resistant with a smooth internal construction for unobstructed material flow. Specification

size	ID	OD	Thickness	Working Pressure		Bursting Pressure		Weight	Length
inch	mm	mm	mm	bar	psi	bar	psi	Kg/m	m/roll
3/4	19	24±0.5	2.5	6	90	18	270	0.23	50
1	25	29±0.5	2.5	6	90	18	270	0.29	50
1-1/4	32	38±0.5	3	6	90	18	270	0.4	50
1-1/2	38	44±0.5	3	6	90	18	270	0.52	50
2	50	58±1.0	4	5	75	15	225	0.9	50
2-1/2	63	71±1.0	4	4	60	12	180	1.15	30
3	75	84±1.0	4	4	60	12	180	1.35	30
4	100	110±1.0	5	4	60	12	180	2.1	30
5	125	138±1.0	6	3	45	9	135	3.2	30
6	152	168±1.0	8	2	30	6	90	5.5	30
8	200	217±1.0	8	2	30	6	90	6.7	10
10	254	274±1.5	10	2	30	6	90	12	10
12	305	329±1.5	12	2	30	6	90	18	10
14	358	382±1.5	12	2	30	6	90	20	10
16	408	436±1.5	14	2	30	6	90	23	10

About US
Kebing has focused on the professional hose, The company integrates production, sales, and scientific research into a new high-tec, polymer composite material plastic product manufacturer. The resin hoses produced by our company include pneumatic hoses, high-pressure hoses, air hoses-fluid hoses, garden hoses, fire hoses, steel wire hoses, plastic hoses, suction hoses Hundreds of varieties of dust pipes, ventilation pipes, etc; We′re pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

---
