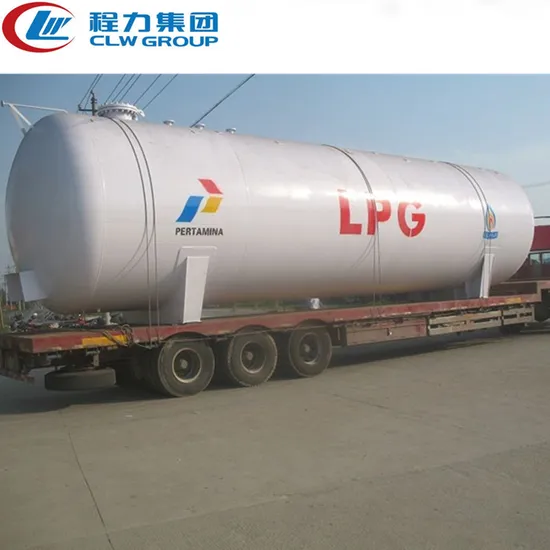

50cbm 25ton LPG Tank 50, 000liter LPG Gas Bulk Tank

Product Description

50,000L LPG Gas Tank 25Tons LPG Storage Tank 50CBM LPG Tank
50CBM LPG Storage Tank 25tons LPG Gas Tank for Zimbabwe 50,000Liter LPG Skid Tank LPG Bullet Tank
50M3 LPG Storage Tank 50,000L LPG Toroidal Tank 50CBM LPG Tank For Sale.ASME 50CBM LPG Tank 25Tons LPG Storage Tank Price. Pressure Vessel 25Tons LPG Tank 50CBM LPG Gas Tank for Sale. 50CBM LPG Storage Tank 25Ton LPG Tank 50,000Liter LPG Gas Tank 25MT LPG Bullet Tank For Nigeria.
LPG storage tank consist of a lpg tank, Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge etc.
There is from 5CBM ~ 200CBM (2.5Ton - 100Ton) LPG TANK for optional. It is used for storing gas, liquid, and vapour mediums, for example, propane, It is widely used in oil, chemical industry, electric power areas.
LPG Tank Technical parameters:

NO.	model	design pressure	Cylinder size (diameter * tube length * wall thickness mm)	Dimensions (outside diameter * total height / total length mm)	Material	Total net weight(kg)
1	10m/10000L	1.77MPa	1600*4400*10	1620*2400*5300	Q345R	2800
2	15m/15000L	1.77MPa	1800*5250*12	1824*2600*6300	Q345R	4250
3	25m/25000L	1.77MPa	2200*5800*12	2224*3000*7100	Q345R	5850
4	30m/30000L	1.77MPa	2200*7100*12	2224*3000*8400	Q345R	6800
5	45m/45000L	1.77MPa	2600*7500*14	2628*3400*9000	Q345R	9770
6	50m/50000L	1.77MPa	2600*8500*14	2628*3400*10000	Q345R	10800
P.S:We can produce according to your request, you need the model,To provide you with the best quality, best price, best service

Technical Specification		Parameter
Tank	Tank name	LPG storage tank
	Overall dimensions	9912*2628*3218 mm
	Inner diameter	2600mm
	Vessel type	on the ground
	Designing pressure	1.77 Mpa
	Working pressure	1.61 Mpa
	Designing temperature	-19~50
	Filling medium	Liquid petroleum/propane gas
	Corrosion margin	1.00 mm
	Curb weight	10910kg
	Heat treatment	Bulk
	Filling factor	520 Kg/ m³
	Tanker & pressure parts material	Q345R
	Hydraulic test pressure	2.22 Mpa
	Produce standard	ASME standard and GB150 standard
	Optional accessories	safety valve, SCL-UHZ (magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc.
Liquid indicator	Model	UHZ-518C14
	Version	Magnetic
	Nominal pressure	2.5 Mpa
	Scope of testing	50~2500 mm
	precision	2.5
Safety Valve	Model	A42F-2.5-80
	Version	Built-in
	Nominal pressure	2.5 Mpa
	Nominal radius	DN80
	Opening pressure	1.68-1.76 Mpa
	Re-seating pressure	≥0.8 Mpa opening pressure
Handling System	Feed pipe	DN80
	Drain pipe	DN80
	Admission port	DN50
	Sewage outfall port	DN80
	Vent nozzle port	DN80

Different Sizes Of LPG Tank: (5CBM To 200CBM For Optional)
Related Pressure Vesssel LPG Products:
For more LPG Tank information, please feel free to contact me or send an inquiry to me: Murphy Tang
Export Director
CHENGLI SPECIAL AUTOMOBILE CO.,LTD (CLW GROUP)
Factory Address: South Suburb, Chengli Automobile Industry Park, Suizhou City, Hubei Province, China.
Website: www.clvehicles.en.made-in-china.com
clvehicles.en.made-in-china.com
