Ground Source / Water Source Heat Pump for Hot Water or Heating

Product Description

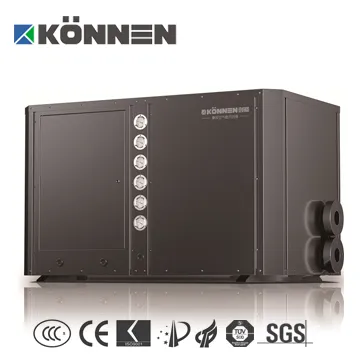

Ground Source Heat Pump
(Water Source Heat Pump)
1. High Reliability
Using famous parts, and as the temperature of the original source is stable, the water/ground source heat pump works more reliable and stable, guaranteeing the high efficiency and economy. Without problem of defrosting in winter.
2. Different functions available
It could be used for cooling, heating or tap hot water for daily life, or combines two/three of these functions.
3. High Efficiency for Heat Recovery
Using the latest high technology, following the law of conservation, when the unit is cooling, the heat recovers to produce the hot water (for example, in summer, it provides the free hot water by heat recovery). The unit is with higher efficiency and more energy saving.
4. Less Cost
The working condition is reliable, so the system is simple and less components. It runs easily and reliably, and maintenance cost is less.
5. Environment friendly
Use R410A refrigerant, the ratio of ozonosphere damage is zero, environment friendly, green product, meet the countries' environmental protection demand.

Water Source Heat Pump
			SFXRS-8I	SFXRS-12II	SFXRS-20II	SFXRS-40II	SFXRS-60II
Heating capacity		kW	8	12	20	40	60
Input Power		kW	1.7	2.5	4.1	8.3	12.6
Input Current		A	9.2	4.7	7.7	15.9	23.8
Rated Outlet Hotwater Temperature		Degree	55
Max Outlet Hotwater Temperature		Degree	60
Voltage			220V/50Hz	380V/50Hz
compressor	Type		Rotor Type	Scroll Type
	Start Mode		Indirect Start
	No.	Unit	1	1	1	2	2
source side heat exchanger	Type		plate-type heat exchanger				Shell and tube exchanger
	Water flow	m3/h	1.1	1.6	2.7	5.3	8.0
	Water pressure	kPa	< 20	< 38			< 40
	Water Pipe	mm	DN20	DN20	DN25	DN32	DN50
Application side heat exchanger	Type		shell and tube heat exchanger				Shell and tube exchanger
	Water flow	m3/h	1.4	2.1	3.4	6.9	10.3
	Warte pressure	kPa	< 20	< 35			< 40
	Pipe Size	mm	DN20	DN20	DN25	DN32	DN50
Protection			high pressure and low pressure protection, anti-freezing protection, high temperature protection, safety valve, overload protection, lack phase protection, reverse phase protection, water flow protection ect.
Refrigerant	Type		R22/R410A/R407C/R134A
	Throttle Type		Thermostatic Expansion Valve
	quantity	kg	1.1	1.9	2.8	2.7× 2	4.5× 2
Noise		≤ dB	35	38	42	62	62
Weight		kg	45	69	93	340	570
Remarks:
1. Hot water side initial water temperature 15C, outlet water temperature 55C.
2. The product is updating, and the parameters are changing according to time, please refer to the label on heat pump with details parameters when buy.

Water source heat pump, ground source heat pump, water to water heat pump, geothermal heat pump

---
