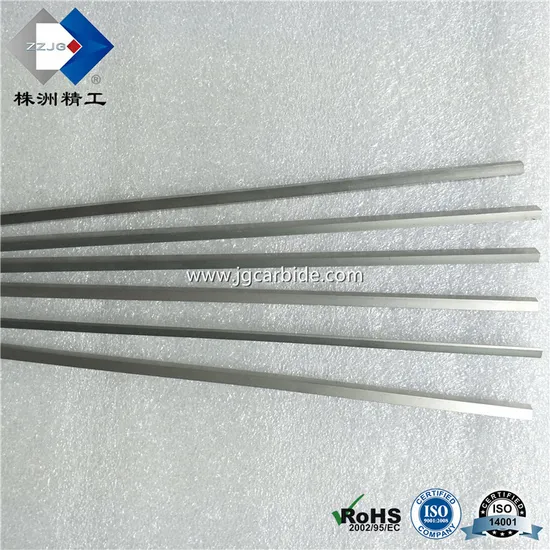

Tungsten Carbide Strips for Cutting Tools Various Size Available

Product Description

The advantages of our carbide cutting plates are smooth, fast cutting speed and have a long service time. Unlimited tracks of grades and sizes of carbide plates are available in our company.
We produce tungsten carbide plates in different sizes and qualities. We accept orders of all types of special products designed for our customers.
All our tungsten carbide plate products must be inspected strictly and only those without any damage.
Various Specifications available:

Item No.	Length(mm)	Width(mm)	Heigth(mm)
CTA100-W-H	100	100	5-60
CTA150-W-H	150	150	5-70
CTA165-W-H	165	5-50	1-6
CTA320-W-H	320	5-50	1-6

Grade details for your reference :

Grade	Cobalt content(Co%	Density(g/m³)	Hardness(HRA)	TRS(Mpa)	Compression Strength(Mpa)	Grain Size(μm)
JM10S	6.0	14.8	90.5	2900	5100	0.8-0.4
JM20S	13.5	14.0	90	3600	5200	0.8-1.5
JM30	12.0	14.3	90	3500	4900	0.8-1.8
JM40	12.5	14.1	89.5	3600	4600	1.0-2.0
JM50	14.0	14.0	88.5	3700	4500	1.5-3.0
JM60	15.0	13.9	87.5	3500	4200	1.0-4.0

Thickness, width, as well as Length can be various. If you have interest in purchasing our products, kindly please provide us the following necessary information for production:
specific dimensions including length, width, and thickness; dimension tolerance if you have; surface condition: sintered blank or grinding; quantity; tungsten carbide grade or chemical composition. ZHUZHOU JINGGONG's Advantages in Carbide Industry:
1. We are a REAL factory located in Zhuzhou, with over 200 employees here for over 16 years.
2. We are ****** Assessed 6 years Gold Supplier.
3. Our output is over 80 tons per month.
4. Certificated by RoHS, ISO 9001:2008, ISO 14001:2004.
5. 100% QC inspection before shippment
6. Our products are produced by 100% Virgin material.
7. We can produce the non-standard items according to your samples or drawings.
More Questions? Welcome to Send Us Inquiry!
Your Senior Consultant : Enya.lee
Mob/WhatsApp/imo :+86-15173277798 Tel: +86-731-22896701
Fax: +86-73122896778 Instagram: enyalee666
