Plastic Mold Maker Injection Mould Glass Bottle Moulded Parts Injection Molding

Product Description

Products Information

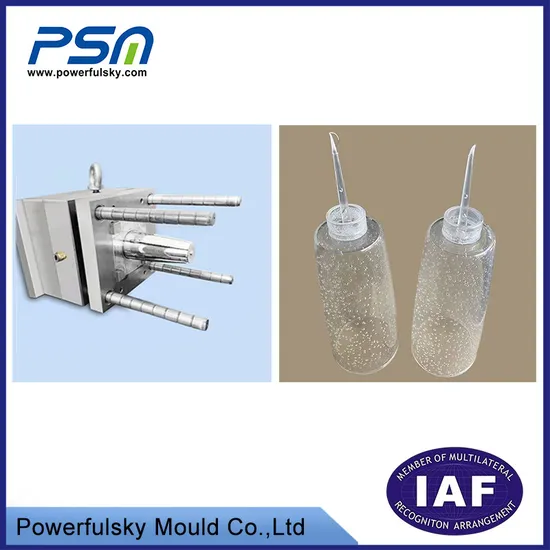

Product Name	Household Hand Pressure Watering Plastic Spray Bottle Injection Mold
Shaping Mode	Plastic Injection Mould
Surface treatment	Polish. Etched. Texture
Ejection System	Ejector pin
Part Material	ABS
Part Size(MM)	350*100*10
Mold Standard	HASCO standard
Packaging	According to customers' requirement
Mould Steel	A plate	S50C
	B plate	S50C
	Cavity Insert	S136 (HRC 45-50 )
	Core Insert	S136 (HRC 45-50 )
	Slider Insert	2344
	Ejector Plate	S50C
	Spare Parts	S50C
Mould Description	Mould Size(L*W*H MM)	480*260*150
	Mould Gross Weight(KGS)	965
	Mould Life Time(Shots)	1,000,000
	Mould Manufacturing Cycle	35 days
	Surface Finish	Polishing
	Runner Description	Hot runner
	Ejection System	Eject blade
	Cycle Time(Second)	55s
	Injection Gate Type	Side gate

Mould Type	Plastic Injection Mold
Mould Material	P20/718/738/NAK80/S136
Mould Base	HASCO,DME,MISUMI,JIS,LKM etc
Mould Runner	Cold Runner/ Hot Runner
Mould Gate	Slide Gate/Sub Gate/Pin- point Gate
Cavity	Single /Multi Cavity
Designing Software	UG/PROE/CAD/SOLIDWORKS
Moulding equipment	CNC,Wire Cutting,Milling Machine,EDM
Raw-material	ABS,PP,PC,PA6,PA66,PVC,POM,PMMA,PS etc
Package way	Wooden pallet, carton
OEM/ODM	Welcome and please offer 2D/3D file or sample
Lead time	About 20 days

Product Name:All-Purpose Spray Bottle Injection Mold
Trigger Spray Bottle Injection Mould
Empty Plastic Spray Bottle Injection Molding
Household Essentials/Cleaning Supplies/All-Purpose Cleaners
Trigger Spray Bottle can be used for small cleaning tasks around the home or workspace. This handy spray holds up to 700 mL of liquid and features a Viton seal to prevent leaks and mess.
1.This spray bottle holds 700 mL of liquid.
2.The Viton seal keeps your contents safe and mess-free.
3.It's ideal for home, garden or business use.
POWERFULSKY MOULD Located in ShenZhen,near by HongKong.PowerfulSky Mould specializes in injection moulding production and injection mould making. In pursuit to provide our clients with economical solutions, our 9000 square meters facility offers a wide range of machinery, ranging from 60 Tons -1000 Tons precision injection moulding capacities, toatomized robotic arm sorting and packing production lines. As the development of the world economic integration, PowerfulSky Mould will spare no efforts in exploring under the principle of " Making your concept into reality". There is no job too small for us. Please enquire so we can help you find a solution.
In-House Design and Manufacturestanding at the forefront of injection moulding and tooling for more than 20 years, PowerfulSky Mould prides itself in our In-House Design and Manufacturing. We employ highly skilled and professional operators for our drilling, CNC, EDM, Proprietary Mirror EDM, Mould Polishing machines. PowerfulSky Mould passed ISO9001 and IATF16949 quality management system certification. As well as ROHS environmental protection system and SGS certification. SPC is widely used in product development design, mould making, products molding, painting, coating, silkscreen and assembly, to ensure our products in high quality and high finish standard.
Powefulsky Mould strives to produce high quality products and fast delivery times forall our clients by providing a complete service. From start to finish we offer Design,Prototyping, Mould making,production, packaging and shipping. Products covered by the industries of medical devices, beauty and care, household appliances, Netcom products and Auto and so on. PowerfulSky Mould's clients from all over the world as: USA, Europe, Brazil, Russia, Australia New Zealand and so on. We always believe technology is the primary productive force for the existence and development of the enterprises.

---
