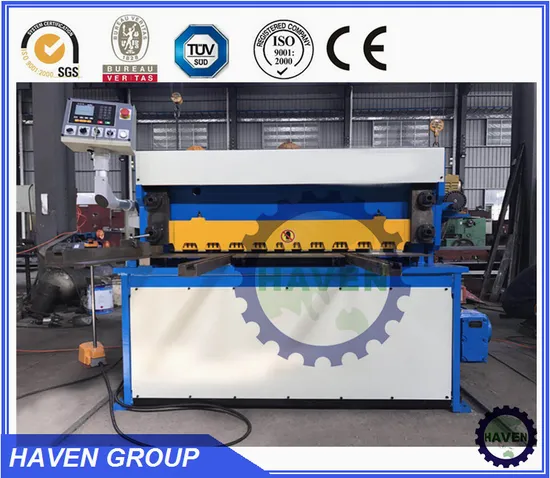

QH11D-3X1500 Mechanical High Precision Shearing Machine

US$1,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
QH11D-3x1500
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Control
PLC
Transport Package
Plastic Covering
Specification
QH11D-3x1500
Trademark
HAVEN
Origin
China
HS Code
8462
Production Capacity
300 Units/Month

Product Description

QH11D-3X1500 Mechanical High Precision Shearing Machine
Main functions:
1) Brake motor driving through a shaft-mounted speed reduction unit and controlled by a selector switch for single of continuous strokes provides quite instantenous engament;
Different from the traditional driving method of mechanical shear
2) it is one of the most advanced miniature mechanical shear, and enjoys good reputation both at home and abroad.
3) The low cutting angle and inclined shear direction reductes bowing and twist to a minimum.
Blade clearance is easily set by a manually operated quick set device.
4) It is an ideal truecut machining equipment of metal sheet and nonferrous metal sheet.
Main specification:
Model QH11D-2.5x2500 QH11D-
3.5x1250
QH11D-
2.5x1300
QH11D-3.0x1500 QH11D-3.2x2500 QH11D-3.2x2000 QH11D-3.2x2200
Max cutting thickness 0.5-2.5 0.7-3.5 0.7-2.5 0.7-3.0 0.3-3. 0.6-3.2 0.6-3.2
Max cutting Width 2500 1250 1300 1500 2500 2000 2200
Cutting angle 1.5°
Travel number of top post 47min-1
Per time travel no 10min-1
Height from worktable to ground 800mm
motor 5.5kw 7.5kw
Motor speed 1380rpm
Machine dimension length 3124mm 1860mm 1910mm 2060mm 3124mm 2624mm 3124mm
Width 2210mm
height 1180mm
Machine weight 2000kgs 1440kgs 1490kgs 1720kgs 2100kgs 1900kgs 2300kgs
