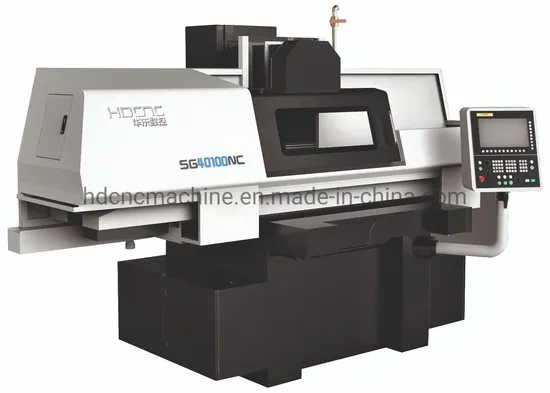

CNC Hydraulic M Series Surface Grinding Machine Grinder

Product Description

1.Machine Features NC2 model the longitudinal movement is driven by hydraulic,the vertical movement and transverse movement adopt precision ballscrew,the two axes are driven by AC servo motor and CNC system.they have high feed sensitivity.It can be used for automatic grinding of plane, forming surface (two axes are linked to realize special-shaped grinding wheel dressing, so as to realize forming surface grinding), groove or ladder with unequal distance and width.It is easy to operate and efficient. NC3 model its three axes adopt precision ballscrew,it is driven by AC servo motor and CNC system,in addition to the NC2 functions,It can also realize the surface grinding of concave and convex surface, arc surface and other special shapes through the longitudinal and transverse direction linkage.
2.Details parameters

SGA series parameters
Specifications		SG2050NC2 SG2050NC3	SG2550NC2 SG2550NC3	SG3063NC2 SG3063NC3	SG4080NC2 SG4080NC3	SG30100NC2 SG30100NC3	SG40100NC2 SG40100NC3
table size(W*L)	mm	200*460	250*500	305*635	406*813	305*1020	406*1020
Max.longitudinal travel	mm	510	560	765	910	1130	1130
Max. transverse travel	mm	238	275	340	450	340	450
Max. distance from spindle center to table	mm	450		580
magnetic chuck size	mm	200*460	250*500	300*600	400*800	300*1000	400*1000
Longitudinal feed	m/min	5-25(NC2 model);0.02-15(NC3model)
MPG feed	mm/div.	0.005(NC3)
worktable transverse movement
Auto feed	mm/stroke	0.005-12
rapid speed	mm/min	0-1
handwheel feed	mm/div.	0.005
wheelhead vertical movement
Auto feed	mm/stroke	0.001-0.005
rapid speed	mm/min	0-1
handwheel feed	mm/div.	0.001
wheel Speed	Rpm	2850		1450
wheel size	mm	200*20*31.75		350*40*127
Spindle motor	Kw	1.5	2.2	5.5
hydraulic motor	KW	0.75(NC2 model)		2.2(NC2 model)
cooling motor	KW	0.04		0.125
CNC system		Fanuc Siemens HNC
Max. table load (include chuck)	Kg	120	180	270	500	400	600
Gross weight	Kg	1600	1800	2600	3300	3200	3800
Package size	cm	178*150*215	200*210*215	235*222*215	285*227*215	295*222*215	295*227*215

3.Standard accessories
4.Optional accessories you can choose
5.Company honors

6.Top view of surface grinder workshop
7. Advantages
1.Factory direct sales, product quality and after-sale can be effectively guaranteed
2.Big listed company who has more than 50 years manufacture experience,more than 30 years international trade experiences.
3.we have been cooperating with many companies abroad,such as KNUTH ,OPTIMUM in Germany,BERNARDO in Austria,MSC, GRIZZLY in USA and some other companies.The quality of our machines has gotten good reputation from them
8.After-sale services
I. During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.
II. After the warranty period, lifelong paid maintenance and service will be provided.technical support forever.
III. Provide spare parts and spare parts at preferential prices for a long time.
IV.the warranty is one year after machine out of our company.
9.Exhibitions

---
