HR911105A Single Port RJ45 Connector with Integrated Magnetics and LED for 10/100Base-T NIC Applications

Product Details

Product Description

Product Description
Factory

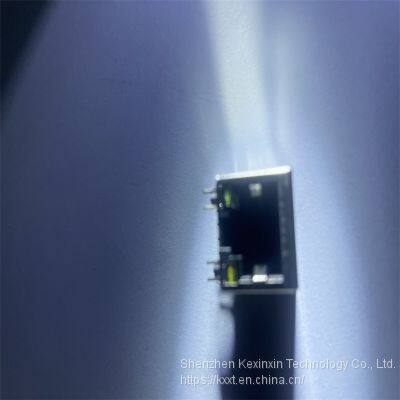

Single Port RJ45 Connector with Integrated Magnetics and LED
for 10/100Base-T NIC Applications
HR911105A
Electrical Specification @25°C
Operating Temperature Range： 0℃~ +70℃
isolation： 1500vrms 0.5ma 60sec( utp side to chip side)
ocl: 350 uh Minimum @100khz 100mv with 8madc
insertion loss: - 1.0db maximum @300khz ~ 100mhz
return loss: -20db minimum @1mhz~10mhz/ -16db minimum @10mhz -30mhz
-12db minimum @30mhz-60mhz/ -10db minimum @60mhz- 80mhz
common mode rejection: -30db minimum @1mhz~50mhz
-20db minimum @50mhz~150mhz
crosstalk: -40db minimum @1mhz~30mhz/ -35db minimum @ 30mhz ~ 60mhz
-30db minimum @ 60mnz~ 100mhz

---
