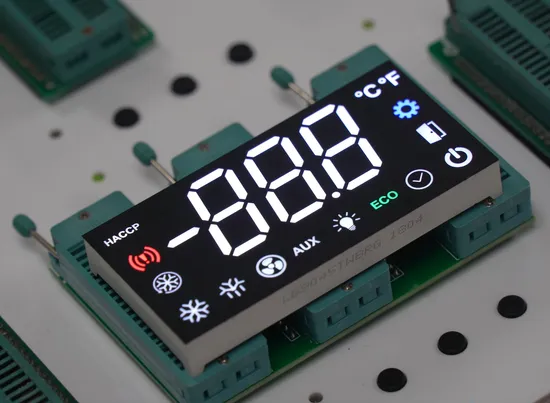

Ultra Bright White Customized 3 Digit 7 Segment LED Display for Refrigerator/Freezer

Product Description

Product Description Refrigerator/Freezer LED Displays have advantage of low power consumption, long lifetime and low cost. Displays designed with customized multifunction symbols : DEFROST,COMPRESSOR,TEMPERATURE INDICATOR,ALARM,FAN,LAMP,ECO, ENERGY SAVING,AUX,HACCP and so on .
We can customize the led display sizes,led colours, functional symbols as per customers requirement .
Specification of Segment LED Displays

Product Name	Custom Seven Segment LED Display	Other Optional
Part NO.	LB9045IWBRG1S	Can print your part number
Digit number	3 digit	1digit,2digits, 3digits,5digits,6 digits
Digit height		0.25,0.36,0.39....5.0(inch)
Color	White Blue Red Green	Red, blue,pure green, yellow-green, orange,etc.
Size	90*45mm	Other size are supported
Polarity	Common Anode	Common Anode
Life span	80000hours
Free Samples	supported
Lead time for sample	5-7 working days	Tooling samples are 15-20 working days
Lead time for formal order	15-20 working days	According to order quantity
OEM&ODM	Support	Based on customer's drawing or idea
LOGO printing	Support	Based on customer's drawing or idea
MOQ	1000PCS	Can accept 100-500pcs for first order

Color:White

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.3	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	25		35	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA				nm

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	ºC
Storage Temperature Range	Tstg	-40~+120	ºC
Solder Temperature(3 sec)	Th	260	ºC

Feature of Segment LED Displays
--White segment Black surface
--High luminous intensity
--Low current operation
--Stable performance
--Continuous uniform segments
--Easy mounting on PCB
--IC compatible
--RoHS compliant
Application of Segment LED Displays
-- Audio Equipment or instrument panels;
-- General using for digital indicators;
-- Multimedia products;
-- Bank exchange rate display;
-- LED clock display;
-- Display for gas station and other various display areas of equipment/machine.

Industrial Equipment
Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems

Why choose us?
1. Best quality
- Three times of inspection on all products on production:
Step 1;raw material check
Step 2: process check and full inspection after chip&wire bonding
Step 3: full test before packing and partial check before shipment
2. Best price
- manufacturer
- best suppliers sources
- all products by oneself
3. Our customer
- long-term relationships with Gree, Media, Panasonic, Chigo, TCL, Samsung, Kone Elevators, Hisense etc
4. Company strength
- good quality&competitive price
- listed company
- factory of over 100 workers, with many auto-machines under advanced ERP management.
- management system: ISO 9001:2008,SGS

FAQ Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Segment LED Displays.
Q: How long is your delivery time?
A: Delivery time:About 15-20 days; According to order quantity.
Q: What is your terms of payment?
A: T/T,Western Union,Paypal with small amount.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list.
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.We will offer the charge to you as you requested.
Q: May I have some samples for testing?
A: Yes,we can provide 5-10pcs free samples in your delivery cost.

---
