Light Duty Rock Picker 3 Point Linkage Rotary Tiller for Tractor Stone Burier Cultivator

Product Description

Product Description

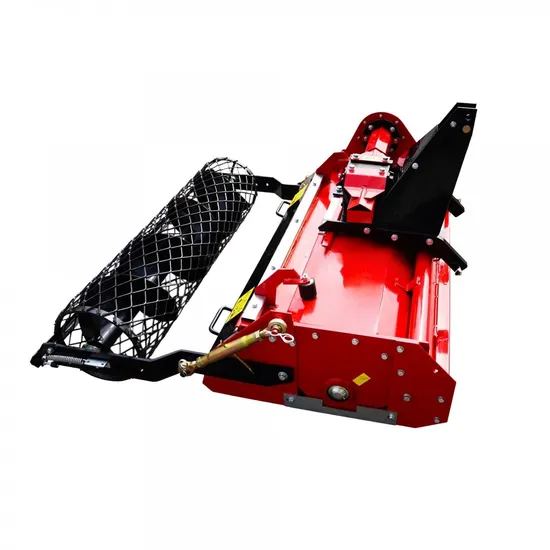

Light duty rock picker 3 Point Linkage rotary tiller for tractor stone burier cultivator
The SB series stone burier is suitable for working in orchards and for gardening. Sturdy cast-iron gearbox, side skids, side chain drive, automatic tensioner, cage roller, three-point hitch, EC safety guards. The shift (120 mm) of the three-point hitch is mechanical and manual and does not require the use of levers.
Product Parameters

MODEL	SB105	SB125	SB145	SB165
DIMENSIONS(L*W*H)	1160x1330x920mm	1360x1330x920mm	1560x1330x920mm	1760x1330x920mm
STRUCTURE WEIGHT	330kg	355kg	380kg	405kg
WORKING WIDTH	950mm	1150mm	1350mm	1550mm
WORKING DEPTH	120mm	120mm	120mm	120mm
WORKING EFFICIENCY	1500-2000m2/h	1800-2400m2/h	2100-2800m2/h	2400-3200m2/h
PTO TURNNING SPEED	540r/min	540r/min	540r/min	540r/min
PTO SPLINE	6x8x700mm	6x8x700mm	6x8x700mm	6x8x700mm
POWER REQUIRED	20-28hp	25-30hp	28-40hp	35-45hp

Detailed Photos
Company Profile
Yancheng Newbang Machinery Co., Ltd. is one of the major tractor implement and ATV implement manufacturers in China.
Our products range: rotary tiller, backhoe, mower, post hole digger, wood chipper, log splitter, box blade with rippers and so on (30 series and more than 200 models). Newbang's implements are CE and ISO9001 certified and our products are mainly exported to North America, South America, Europe,Asia, etc. We get a good reputation from the worldwide customers.
FAQ
Q1. what's your main products? A: Our products are covered almost all farm machines. Q2: How long is the delivery date? A: In general, we can ship the goods within 30-45days after receiving your payment. Q3. Do you have after-sales service? A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality. Q4. Can you print my brand name on it? A: Of course, you just need to send us the picture of your brand. Q5. what's your payment term? Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L. Q6. Can I mix different models together? A: Yes, you can mix different products or models in a container and we will try our best to use the container place. Q7. what your terms of payment? A:T/T, L/C, and western union

---
