| US$0.30 | 20,000 Meters (MOQ) |
| Essential details | |||||
| Place of Origin: | Zhejiang,China | Material: | Pex | ||
| Specification: | 16-63MM | Length: | 25/50/100/200/300/500 or OEM | ||
| Thickness: | 2.0, 2.5, 3.0, 4.0, 4.5, 6.0 | Standard: | AENOR,SKZ,WRAS,WATERMARK | ||

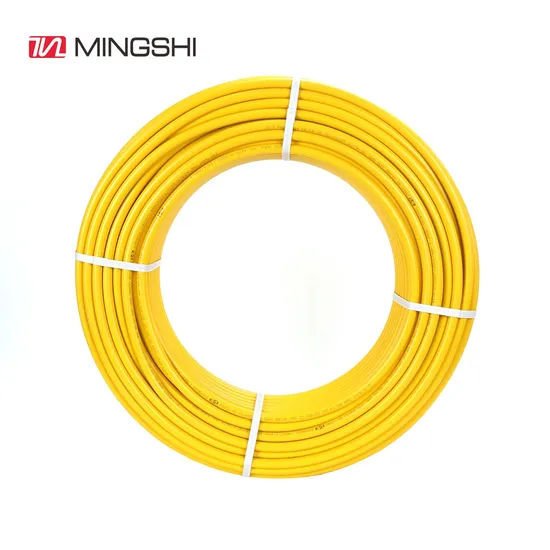

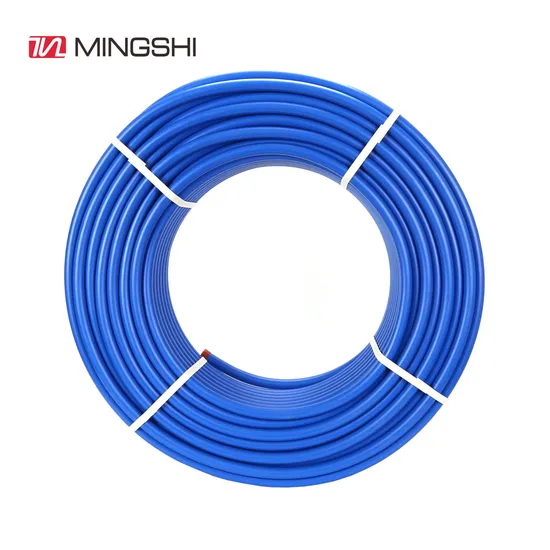

| Processing Service: | Cutting | Product name: | Pex-Al-Pex pipe | ||
| Application: | Gas system,Water system, Under floor heating. | Type: | Plastic Building Material | ||
| Raw Material: | Pex, Aluminum | Colors: | White,Red,Blue,Orange,Red or OEM | ||
| Logo: | Support custom logo | Features: | Corrosion Resistant,fire resistant,high pressure | ||
| MOQ: | 10000m | Shape: | Round | ||
| Advantage: | Flexible,easy to install | ||||
| Supply Ability | |||||
| Supply Ability: | 3000000 Meters per month | ||||
| Packing&Delivery | |||||
| Packing Details: | With craft paper, then plastic film outside/Plastic bag | ||||
| Port: | Ningbo or Shanghai | ||||
| International Standards | ||
| 1 | EN ISO 21003 | Multilayer piping systems for hot and cold water installations inside buildings |
| 2 | AS 4176.2 & 3 | Multilayer piping systems for hot and cold water plumbing applications- PIPES & FITTINGS |
| 3 | ISO17484-2:2009 | Multilayer Plastics piping systems for indoor gas installations |
| International Certificates | ||
| 1 | AENOR | refers to EN ISO 21003,UNE-EN ISO 53007 |
| 2 | QB | refers to EN ISO 21003 |
| 3 | ACS | refers to XP P41-250 |
| 4 | Watermark | refers to AS 4176.2 & 3 |
| 5 | WRAS | refers to Regulators' Specification |
| 6 | ISO 9001:2015 | Quality management system |
| Size&Tolerance | ||||||||||
| Nominal size(D x e) | 14×2.0 | 16×2.0 | 18×2.0 | 20×2.0 | 25×2.5 | 32×3.0 | 40x4.0 | 50x4.5 | 63x6.0 | |
| Outside diameter (mm) | 14 | 16 | 18 | 20 | 25 | 32 | 40 | 50 | 63 | |
| Tolerance of Outer diameter (mm) | Min | 14 | 16 | 18 | 20 | 25 | 32 | 40 | 50 | 60.6 |
| Max | 14.3 | 16.3 | 18.3 | 20.3 | 25.3 | 32.3 | 40.4 | 50.5 | 63 | |
| Inside diameter(mm) | 10 | 12 | 14 | 16 | 20 | 26 | 32 | 41 | 51 | |
| Tolerance of Inner diameter (mm) | Min | 9.9 | 11.9 | 13.9 | 15.9 | 19.9 | 25.9 | 30.9 | 39.4 | 49.3 |
| Max | 10.2 | 12.2 | 14.2 | 16.2 | 20.2 | 26.2 | 31.9 | 40.8 | 50.8 | |
| Pipe thickness (mm) | 2 | 2 | 2 | 2 | 2.5 | 3 | 4 | 4.5 | 6 | |
| Tolerance of pipe thickness (mm) | Min | 2 | 2 | 2 | 2 | 2.4 | 2.9 | 4 | 4.5 | 6 |
| Max | 2.25 | 2.25 | 2.25 | 2.25 | 2.7 | 3.2 | 4.6 | 5.2 | 6.8 | |
