China Factory Supply Ut139A/B/C Series Low Price Digital Multimeter

Product Description

China Factory Supply UT139A/B/C Series Low Price Digital Multimeter
I. Product Description of China Factory Supply UT139A/B/C Series Low Price Digital Multimeter

A. Key Features
UT139 Series digital multimeters are newly designed to offer users better performance and higher safety rating. Totally over-load protection and unique structural design make it new type of multimeter with high performance/ price ratio and a best choice for electricians used in electrical maintenance and repairing.
1,True RMS for the whole series;
2,Measure signals with varied frequency (VFC);
3,Measure large capacitance up to 100mF;
4,Optional AC/DC 60A current clamps in different models to measure current up to 60A(1mv=1A);
5,NCV designed for the whole series, a necessity for electricians;
6,AA1.5V*2(5#) battery, easy for users to purchase and replace;
7,Soft rubber holster is easy to stand 2m drop;
8,Optional magnetic hanging strap offered to facilitate tests in special location;
9,Fast to replace fuse, just by opening battery cover;
10,Reliable with use of internal 2PCS fuses with high-breaking capacity;
11,Protection against 600V input/1 minute from misconnection;
12,Safety Rating: CAT III 600V.
B. Applications
An ideal tool for equipment testing, maintenance and repair widely needed in electronics, electric power, schools, metallurgy, communications, manufacturing, petroleum, national defense, chemical industry, etc.
II. Parameter of China Factory Supply UT139A/B/C Series Low Price Digital Multimeter

Specifications	Range	Best Accuracy
Model		UT139A	UT139B	UT139C
DC Voltage (V)	20mV/200mV/2V/20V/200V/600V	±(0.5%+2)
	40mV/400mV/4V/40V/400V/600V		±(0.5%+2)
	60mV/600mV/6V/60V/600V			±(0.5%+2)
AC Voltage (V)	20mV/200mV/2V/20V/200V/600V	±(1%+3)
	40mV/400mV/4V/40V/400V/600V		±(0.8%+3)
	60mV/600mV/6V/60V/600V			±(0.8%+3)
DC Current (A)	200μA/2000μA/20mA/200mA/2A/10A	± (0.7%+2)
	400μA/4000μA/40mA/400mA/4A/10A		± (0.7%+2)
	600μA/6000μA/60mA/600mA/6A/10A			± (0.7%+2)
AC Current (A)	200μA/2000μA/20mA/200mA/2A/10A	±(1%+3)
	400μA/4000μA/40mA/400mA/4A/10A		±(1%+3)
	600μA/6000μA/60mA/600mA/6A/10A			±(1%+3)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(1.0%+2)
	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ		±(0.8%+2)
	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ			±(0.8%+2)
Capacitance (F)	9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/ 999.9μF/9.999mF/99.99mF		±(4.0%+5)	±(4.0%+5)
Frequency (Hz)	10Hz-10MHz		±(0.1%+4)	±(0.1%+4)
Temperature (°C)	-40 °C~1000°C			±(1.0%+3)
Temperature (°F)	-40°F~1832°F			±(1.5%+5)
Features
Display Count		2000	4000	6000
Auto Range		√	√	√
Manual Range		√	√	√
True RMS		√	√	√
Bandwidth (Hz)		45Hz~400Hz	45Hz ~1kHz	45Hz ~1kHz
V.F.C		√	√	√
Duty Cycle	0.1% ~ 99.9%		√	√
Diode		Around 2V	Around 3V	Around 3V
NCV		√	√	√
Battery Test	1.5V / 9V	√
Auto Power Off	Around 15 Minutes	√	√	√
Continuity Buzzer		√	√	√
Low Battery Indication	≤2.5V	√	√	√
Data Hold		√	√	√
Relative Mode		√	√	√
MAX/MIN		√	√	√
LCD Backlight		√	√	√
Input Protection	600Vrms	√	√	√
Input Impedance for DCV	1GΩ Max	√	√	√

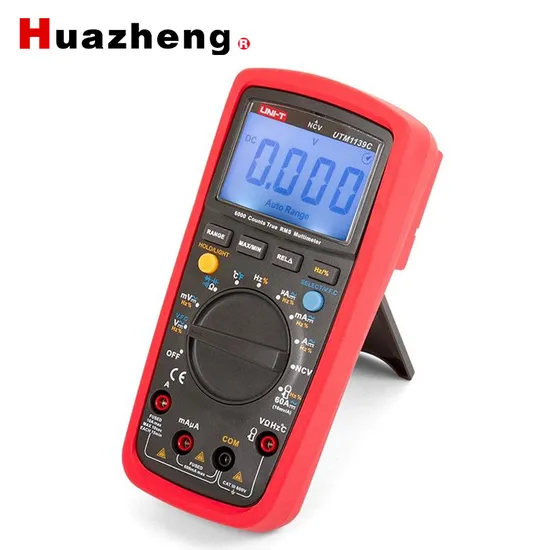

III. Detailed Photos
IV. Company Information
HuaZheng Electric Manufacturing (Baoding) Co., Ltd is the supplier of the State Grid in China. It means we are the supplier of the Chinese Government. And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malaysia, Vietnam and so on.
Our main products are Digital Multimeter, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
V. Our Services
1. 24 hours hot line.
2. We supply OEM service.
3. Our engineers available to service machinery overseas.
4. We can produce the products as your request.
5. To produce high quality products, services to the public.
6. To act quickly, seize the opportunity, continuous innovation, the pursuit of excellence.
VI. FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Baoding city, Hebei province, China.
You can go to Baoding by train directly.
All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A:Quality is priority.we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained BV, CE,ISO, SGS authentication.
5. Q: May I send deposit by Paypal?
A: yes, for the small amount, we accept paypal.
6. Q: May I know your payment term?
A: Mostly, we work with: FOB / CNF / CIF or EX-WORK.
100% by T/T before delivery. Small amount by T/T or Western Union or Paypal are acceptable.
7. Q: May I know your delivery term?
A: Depending on your quantity, for goods we have in stock, Delivery takes 2 days to comply with your
request.
For Regular order, delivery takes between 20-30 days.
