Concrete Mixing Works Flake Ice Machine

Product Details

Product Details

Product Description

Product Description

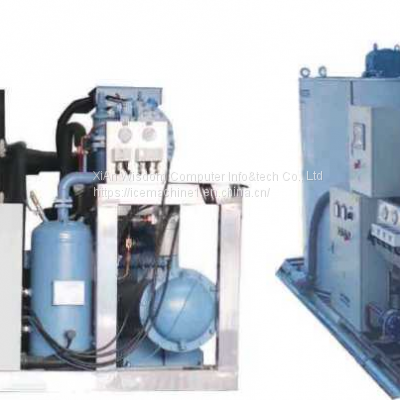

Large industrial flake ice machines are mainly used in aquatic processing, nuclear power construction, environmental protection engineering, transportation and railway construction, mine cooling and freezing, artificial ski resort, medicine and chemistry, concrete mixing engineering ,etc.and the ice production from 20T/day to 60T/day , which can meet the industrial ice demand.
ModelIce ProductionCooling Capacity (kw)Compressor Power (kw)Reducer Power(kw)Pump Power(kw)Weight(kg)Unit DimensionStorage Bin (mm)
DFI-20T20000130761.53728603900x2100x2200mmCustomized as required
DFI-25T25000162.5981.50.731003900x2100x2400mm
DFI-30T300001951152.21.533003900x2100x2500mm
DFI-40T400002601302.21.535004100x2100x2500mm
DFI-50T500003251963.21.542007250x2200x2450mm
DFI-60T600003902304.11.546507250x2200x2550mm

Note:
l.Standard Cooling Mode: water cooling,air cooling can be ordered according to customers' requirements ;
2. Power Supply: 380V/50Hz/3P,other voltages can be customized ;
3. Refrigerant: R22/R404A ;
4.Standard Condition: ambient temp.25°C, water inlet temp.20°C, evaporating temp.-20°C,condensing temp.40°C ;
5.Flake Ice Thickness:!.5-2.5mm.
ICE MAKER HOW TO WORK?
The working principle
Through the make-up water valve, water is automatically entered into a water storage tank, and then the flow control valve through the pump to the water to the tap head, where water spray evenly to the ice on the surface, like water through the wall of ice and water is cooled to freezing point, and were not frozen water evaporation will through porous slot into the water storage tank, resume work cycle.
When THE ICE REACHES THE REQUIRED THICKNESS (THE thickness can be ARBITRARILY SELECTED by the OPERATOR/user), the HOT gas discharged from the compressor is REdirected back to the clamping wall of the ice maker to replace the low-temperature liquid refrigerant. This creates a thin film of water between the ice and the wall of the evaporation tube, which will lubricate the ice as it falls freely into the tank below by gravity. The water produced during the ice harvesting cycle will be returned to the storage tank through the porous tank, which also prevents the wet ice from being discharged by the machine.
1. The chilled water of the water storage tank is continuously circulated through the evaporator of plate or grid with a pump;
2, the compressor after operation by inspiration-compression - exhaust - condensation (liquefaction)- throttling - and then in the evaporator to -10 to -18 degrees of low temperature evaporation heat absorption vaporization. Frozen water in the temperature of 0 degrees Celsius constantly on the surface of the lower temperature evaporator ice. When the ice condenses to a certain thickness, the evaporation temperature of the refrigerant reaches the set temperature of the temperature control, that is, the defrosting solenoid valve is connected to the form of heat pump deicing, and then the next cycle.
Ice making process
Through the inlet valve and automatic water into a water storage tank, and then through the pump pumping to shunt, shunt tube will be low temperature water flow evenly into the liquid refrigerant cooled evaporator, water is cool to freezing point, these cooling to the freezing point of water will be frozen into ice, and not be evaporator frozen water and into the water storage tank, through the water pump to start work cycle.
When the ice reaches the required thickness, it will enter the de-icing state, and the high-pressure hot gas discharged from the compressor will be drained to the evaporator through the reversing valve to replace the low-temperature liquid refrigerant. This creates a film of water between the ice and the evaporator. This film removes the ice from the evaporator, and the ice falls freely into the ice storage tank below by gravity.
