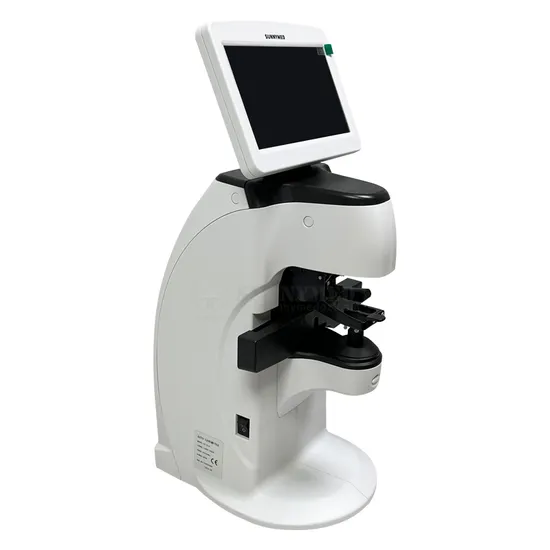

Sy-V101 Precise and Rapid Digital Lensmeasuring Apparatus Automated Optical Lens Meter

Product Description

SY-V101 Precise and Rapid Digital Lensmeasuring Apparatus Automated Optical Lens Meter Product Description Whole process of computer control & automatic reading. Highly sensitive optical path control for measuring various types of lenses, with automatic control calibration procedure for tiny deviation calibration during measurement. Full series with UV measurement, blue light measurement, visible light measurement, virtual pupil distance ruler, preset prism value and wireless Bluetooth function, Power topographic function optional PD measurement ¸ PH measurement and thermal printing function.

Sphere	-40.00D~+25.00D
Cylinder	0~±10.00D
Axis	0°~180°(1°Steps)
ADD	0~10.00D
Prism	0~10Δ
Minimu	m measuring value
Diopter	0.01/0.12/0.25D
Prism	0.01/0.12/0.25A
Other	information
Cylinder	+/±/-
Prism	X-Y/P-B
Measure speed	0.05S
Light source wavelength	525nm
UV Wavelength	400nm
Blue light wavelength	425nm
Lens diameter	18-100mm
Display	7"(1024*600)True color capacitor touch
Printer	Thermal Printer
Data connection	RS232,Blue BLE,SPP
Size	235(L)*192(W)*436(H)mm
Weight	3.7Kg
Power supply	110V-240V 50Hz-60Hz

Detailed Photos
Our Advantages
FAQ Q: How to purchase your products ?
A: You can contact with us and purchase from our company directly. Normal procedure is: offer, sign contract, payment and shipment.

Q: What's the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified. However, we will still provide good after-sales service after warranty period.

Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.

Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The
price will be adjusted appropriately as the price fluctuation of raw material in
the market.

Q: What's the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about
7-10 days to finish the production.

---
