Auto Tube Bending Machine Ss Pipe Bending Machine CNC Pipe Bender for 168CNC

Product Description

Product Description
Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-168CNC Machine Characteristic The series was adapted in particular to professional world market requirements. All the parts, structure and characters are similar to the standard of mechanical engineering from Europe.Our professional experience and drawings plans for Electric, Electronic, Hydraulic and mechanical from known companies bring to upgrading of the machines' systems to accurate and attractive performance.
GM-SB-CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe bending(C axis), pipe rotating(B axis), and pipe feeding(Y axis) are all drove by servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.
Main Technical Parameter

Name	Unit	Parameter
Mild steel round tube	mm	φ168*16
Stainless Steel	mm	φ168*10
Light alloy annealed round tube	mm	φ168*22
Mild steel square tube	mm	150*150*10
Mild steel rectangular tube	mm	155*150*10
Mild steel round solid bar	mm	Φ90
Mild steel square solid bar	mm	85*85
Min. bending radius	mm	60
Max. Bending radius(Standard)	mm	700
Head overhang (on bending centre)	mm	720
Head height (on bending centre)	mm	996
Bending centre height (from floor)	mm	1200
Max. bar passage inside the P.O.B. positionner	mm	100
Clamping adjustable stroke	mm	0-198
Shouldering adjustable stroke	mm	600
Mandrel retraction adjustable stroke	mm	0-260
Max. Bending Angle	°	190°
Through Effective Distance	mm	5600
Bending Speed(Max.)	°/sec	8
Max. rotation speed (axis Z)	°/sec	80
Max. shifting speed (axis X.)	mm/sec	300
Bending angle Precision	°	±0.10
Rotation angle Precision - axis Z	°	±0.10
Shifting Precision - axis X	mm	±0.10
Rotation Servo Motor Power	KW	3.5
Feeding Servo Motor Power	KW	1.5(2)
System Motor Power	KW	22
Hydraulic Pump Volume	L	76
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	7200*2200*1450
Machine Weight	T	ABOUT 14

Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(BEIDE)/ Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
Transformer	Wuxi Xinyu

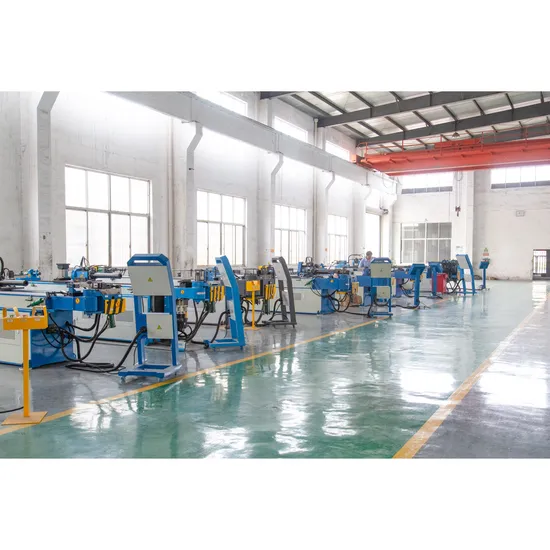

Detailed Photos

---
