Premium Wanhua Clarnate A1107 Resin for Applications Polycarbonate Resin PC

Product Description

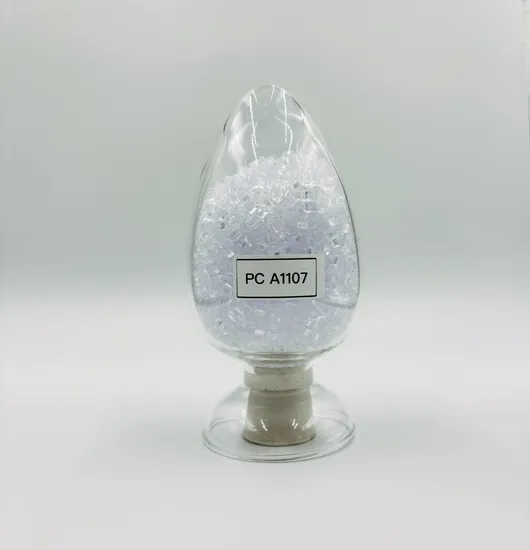

Product Description Clarnate® A1107
Features: Medium viscosity, Easy release, UV stabilized Uses: General purpose Appearance: Clear/ transparent Forms: Pellets Processing Method: Injection molding Product Parameters Properties Property Name Value Unit

Appearance	Granule	--
Physical State	Solid	--
Relative density (water = 1)	1.18-1.20	--
Auto-Ignition Temperature	>550	°C
Decomposition Temperature	>380	--
Melting point/freezing point	>240	°C
Flash Point	>522	°C
Molecular Weight	516.58	g/mol
Solubility in Water	Immiscible	--

Specifications Specification Name Value Unit Test Method Test Condition

Melt Flow Index at 300°C/1.2 Kg	10	g/10min	ASTM D1238	--
Mold Shrinkage	0.5 - 0.7	%	ASTM D955	--
Water Absorption at 23°C, 24h	0.2	%	ASTM D570	--
Density	1.2	g/cm3	ASTM D792	--
Stress at Break at 50 mm/min	70	MPa	ASTM D638	--
Tensile Modulus at 1 mm/min	2300	MPa	--	--
Yield Stress at 50 mm/min	65	MPa	--	--
Yield Strain at 50 mm/min	6	%	--	--
Strain at Break at 50 mm/min	120	%	--	--
Flexural Strength at 2 mm/min	98	MPa	ASTM D790	--
Flexural Modulus at 2 mm/min	--	MPa	--	--
Izod Notched Impact Strength at 23 °C	780	J/m	ASTM D256	--
Heat Distortion Temp. at 1.82 MPa; 3.2 mm	128	°C	ASTM D648	--
Vicat Softening Temp. at 120 °C/h; 50 N	149	°C	ASTM D1525	--
Haze at 3 mm	< 0.8	%	ASTM D1003	--
Light Transmittance at 3 mm	89	%	--	--
Refractive Index	1.586	--	ASTM D542	--
Flame Rating at 3 mm	HB	--	UL 94	--
Flame Rating at 1.5mm	V2	--	--	--
Relative Permittivity at 100 Hz	3.1	--	IEC 60250	--
Relative Permittivity at 1 MHz	3	--	--	--
Dissipation Factor at 100 Hz	5	10^-4	--	--
Dissipation Factor at 1 MHz	90	10^-4	--	--
Volume Resistivity	10^14	Ω·m	IEC 60093	--
Surface resistivity	10^16	Ω	--	--
Electric Strength at 1 mm	34	kV/mm	IEC 60243-1	--
Comparative Tracking Index at Solution A	250	V	IEC 60112	--
Drying Temperature	--	°C	--	--
Drying Time	--	h	--	--
Injection Temperature	280 - 310	°C	--	--
Mold temperature	80	°C	--	--
Injection Speed	50	mm/s	--	--

Applications
