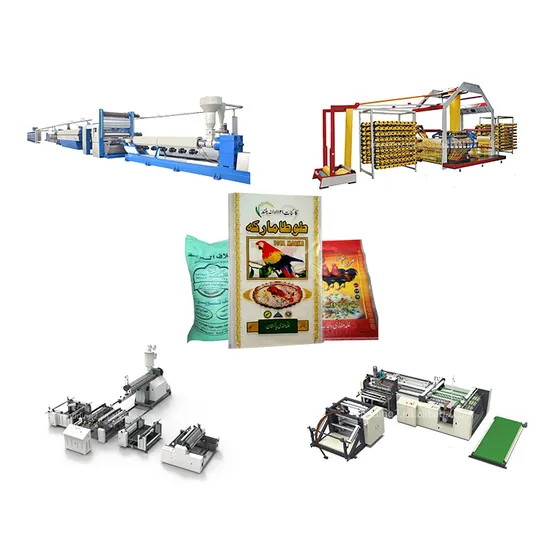

PP Polypropylene Big Bags Production Line

Product Description

FLAT YARN EXTRUSION LINE:The flat yarn making machine is adopted micro-processor control.
The structure of the line is compact wticated manufactngineering,
convenient operation and reliable production, it can be used in producingflat fiber form thermoplastic, such as polypropylene(PP)
and high-density polyethylene(HDPE)etc.

Type	Max extrusion volume	Driving power of extruder	Ratio of L/D	Revolution of screw(r/min)
ZD-SPL-90/33/1000	280kg/h	90kw	33:1	20-120

CIRCULAR LOOM:This circular loom is characterized by low noise and low energy consumption. 1. The circular loom is designed with small cam type convex table.
2. Without sliding blocks and bars,Roller wheel transmission system also requires no lubrication.
3. The loom will automatically stop working when there are circumstances such as warp yarn breaking.

Type	Weaving width (mm)	Max. number of warp yarn	Main motor speed (r/min)	Main motor power (kW)
S-YZJ-750/6S	300- 850	720	120-160	2.2/3

AUTOMATIC LAMINATING MACHINE:This woven fabric laminating machine making use of the good adhesive property of polypropylene & polyethylene.This machine has the functions of fully automatic material receiving and refuelling, PLC control system, fully automatic weight control system,man-machine operation interface, and it is a high-quality supply in the same industry.

Type	Diameter of extruder screw	L/D ratio of screw	Number of Die	Width of Die
ZD-FMF105 / 1000	105	28:1	2	1000

HIGH SPEED FLEXOGRAPHIC MACHINE:1. The flexo printing equipment is convenient for operation, and offers soft start and accurate color registration. 2. This flexo printing machine is manufactured with a meter counter. So, it allows users to preset the printing length. When printing length reaches preset value, the printer will automatically stop working. When there is material shortage, the printer will also stop working.

Type	Max.printing width(mm)	Printing length(mm)	Printing speed(m/min)	Max. width of printing material (mm)
ZD-RY4800B	700	230-1200	5-50	1200

WOVEN BAG MAKING MACHINE:1. It can automatically accomplish the fixed-length thermal cutting and the bottom hemming for the woven cloth in roll,which saves labor forces.2. It adopts the servo motor to drive, and the optical code meter to count the length, which precisely controls the length ofbags.
3. After the heat cutting, the plackets of bags are easy to open, not conglutinated.
4. Pneumatic up-coiling, the operation is convenient.
5. Two working position for circulation transferring by magnet gripper.

Type	Cutting length (mm)	Folding width (mm)	Gross power (kw)	Max.cutting width (mm)
ZD-SCD-45	600-1200mm	20-30mm	6KW	800mm

FAQ:
1. Q:How long will your engineer reach our factory? A:Within one week after everything ready (machine arrival your factory, nonwoven material, power source, air compressor etc.Prepared).
2. Q:How many days will you finish installing ?
A:We will finish installation and training within 15 days.
3. Q:What should we charge for your engineer?
A:You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.
4. Q:How long is your machine's warranty period?
A: All our machine have half a years guarantee for electricity parts and one years guarantee for mechanism, starting from finished installation.
5. Q:How could you do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
6. Q:How could you do after one year warranty period?
A:We also can do service for you, but you need pay salary for our technicians 80USD/day for each person.
7. Q:Does your engineer understand English?
A:Our engineers understand a little English. All our engineers have more than five years machine installation experience.
8. Q:Can you help us find any engineer in our location?
A:Of course, we will check and inform you as soon as possible.
9. Q:How do we solve the machine problem after your engineer leaving?
A:Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time. Our engineers will take a solution video according your description.

---
