| US$180,000.00 | 1 Piece (MOQ) |

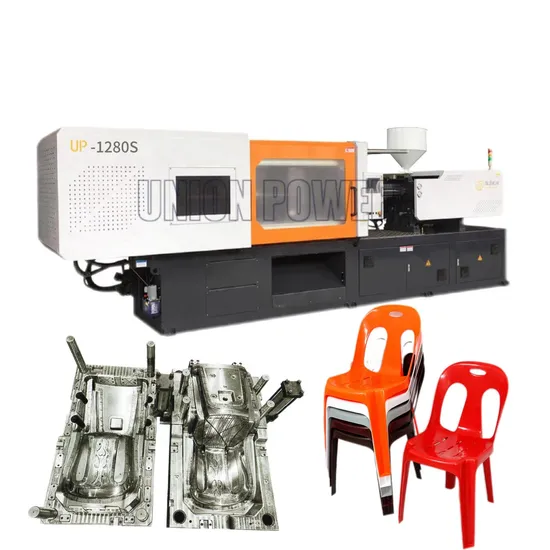

| Technical Parameters | Model UP-1280T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 120 | 130 | 140 |
| Shot Volume (cm3) | 6600 | 7745 | 8980 |
| Injection weight (g) | 6005 | 7045 | 8170 |
| injection pressure (Mpa) | 172 | 147 | 126 |
| Screw speed (rmp) | 90 | ||
| Clamping Unit | |||
| Clamping force (KN) | 12800 | ||
| Open stroke (mm) | 1300 | ||
| Max Mold height (mm) | 1250 | ||
| Min Mold height (mm) | 550 | ||
| Space between tie bars(mm) | 1300x1260 | ||
| Ejector force (KN) | 215 | ||
| Ejector stroke (mm) | 330 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 39.7+39.7+39.7 | ||
| Heating power (KW) | 85 | ||
| Machine dimension (M) | 13.7x3.1x3.5 | ||
| Machine weight (T) | 61 | ||
| Oiltank cubage (L) | 2000 | ||
