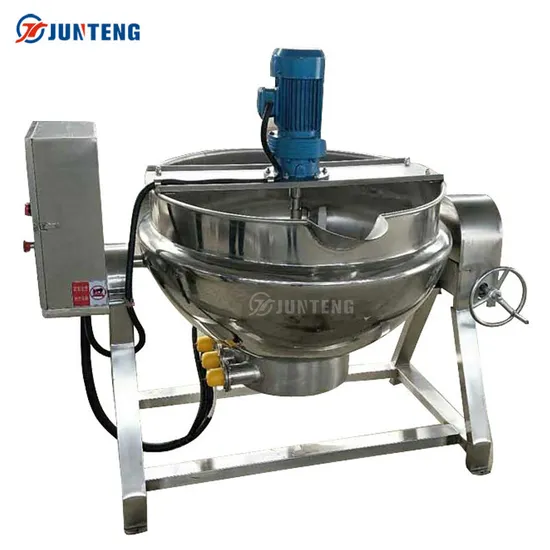

Electric Jacket Kettle Jacketed Stainless Steel Industrial Mixing Tank

Product Description

Related Products

Product Parameter

Model	Volume(L)	Dia.(mm)	Agitator power(Kw)	Heating Power	Heating area	Design Temperature
									(KW)	(m2)
JTKL-50	50	600	0.75Kw	0.2	0.57	300
JTKL-100	100	700	0.75Kw	0.45	0.76	300
JTKL-150	150	750	1.5Kw	0.76	0.76	300
JTKL-200	200	800	1.5Kw	1	1	300
JTKL-300	300	900	1.5Kw	1.15	1.27	300
JTKL-400	400	1000	2.2Kw	1.44	1.57	300
JTKL-500	500	1100	3.0Kw	1.9	1.9	300
JTKL-600	600	1200	3.0Kw	2.4	2.26	300
JTKL-800	800	1300	3.0Kw	3.2	3.2	300

Products Description: This machine uses a molded stainless steel pot to ensure that the pot is smooth. It can beheated by steam,conducting oil and electromagnetic. Using special planetary stirred, make the stirrer contact with the pot body fully, which makes sure the pot without stirring blind Angle. Using advanced transmission and seal structure to ensure the pot clean and hygienic. Perfect use variable speed drives and cycloid machine and tilt drive combination ,increases the drive torque,the stirring speed can be adjusted in the range of speed. Hydraulic lift and turn pot, save more time and labor.

Product Display
Key Components

High Quality and Nicely Built jacketed kettle for Your Trust and Honored Choice!




01, Glass Manhole

The high pressure sight glass manhole is a way for raw material loading and deep cleaning. The operator can see the mixing process inside the boiler clearly. So that all reactions changes inside the tank can be monitored closely and timely. This manole can be made in stainless steel with a sight glass union too per clients requirement. But all these manles should bear high pressure in order to avoid any air leaks during the production process.






02, Ex-proof Electric Motor
The Ex-proof elctric motor is connected with a gear box to drive the mixing blade to stir the raw materials inside the tank. The raw materials can be liquid, paste or sometimes powder. The Ex-proof electric motor is very important for some specific industries, such as alcohol distillation and chemicals.







03, Mixing Blade
Actually, there are many different kinds of mixing blades, such as paddle mixer, anchor mixer, magnetic mixer, spiral ribbon mixer etc.. The customers can choose the most suitable one per the requirement of application.






04, Liquidmeter
The liquidmeter is usually required if you are going to proceed the liquid materials. You can check and closely monitor the latest liquid level of the material inside the tank during the production process. There are common sight glass liquidmeter, magnetic flap level gauge and so on.
05, Control Panel
The operator can control the raw material loading, heating, mixing and transfer easily by the control panel. The whole process can be done semi-automatic and fully automatic per clients requirement.
Production Process
Company Profile
FAQ
Q: Are you a manufacturer or trading company? A: Junteng is leading manufacturer based in Wenzhou, China. Q: Which kind of product can you make? A: We are producing and supplying distillery equipment, dairy equipment, crafts beer equipment, tanks and sanitary components.
Q: Can you make the products per our requirement? A: Yes, Junteng has strong R&D team that can provide you customized solution and products.
Q: Will you charge us for drafting drawing and designing? A: No, we provide free engineering and designing services for our customer if that is necessary.
Q: What is the warranty of your products? A: The standard warranty is 1 year for our products.
Q: Can you provide service and instruction for installation after delivery? A: Yes, we can provide you free instruction and support online. We can also send engineer to your factory for onsite instruction. But you need to pay the travel expense.
Q: Can we become your local distributor? A: Yes, we are working with many distributors all over the world. We'll be glad to discuss with you for the details if you have interest.
Q: What is your required MOQ? A: The MOQ is 1pc for the stock products. The MOQ of custom made product should be per discussion.

---
