Radial Drilling Machine Z3050 Z3050X11 Z3050X16 Z3050X16/I Z3050X16/II

US$5,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

Z3050 Z3050X11 Z3050x16 Z3050x16/I Z3050x16/II

Structure

Vertical Drilling Machine

Layout

Vertical

Controlling Mode

Manual

Number of Shaft

Manual

Hole Diameter

<50mm

Automatic Grade

Manual

Precision

Certification

CE, ISO 9001

Condition

New

Spindel Travel

210mm

Drill Capacity

50mm

Motor Power

4kw

Transport Package

Plywood Case

Specification

Cast Iron

Trademark

HOYONG-TRD

Origin

Shandong, China

HS Code

845929000

Production Capacity

300

Product Description

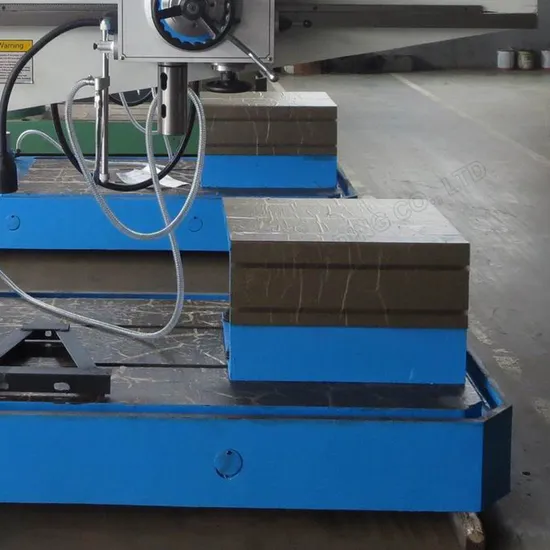

RADIAL DRILLING MACHINE FEATURES: Mechanical transmission Mechanical / Electricity clamping
3.Mechanical speed Automatic take-off and landing Automatic feed SPECIFICATIONS:

SPECIFICATIONS	Z3050X11	Z3050X14	Z3050X16
Max.drilling dia(mm)	50
Distance from spindle nose to table surface(mm)	260-1150	300-1250	260-1150
Distance between spindle axis and column surface(mm)	360-1050	330-1310	360-1600
Spindle travel (mm)	210
Spindle taper	MT5
Spinde speeds range(r.p.m)	78,135,240,350,590,1100
Spinde speed step	6
Spinde feeding range(r.p.m)	0.10-0.56
Spinde feeding step	6
Rocker rotary angle	360
Main motor power(kw)	4
Movements motor power(kw)	1.5
N.W/G.W(kg)	1700/1900	2000/2200	2500/2700
Overall dimensions(mm)	1550x705x2250	1950x810x2450		2170x950x2450
