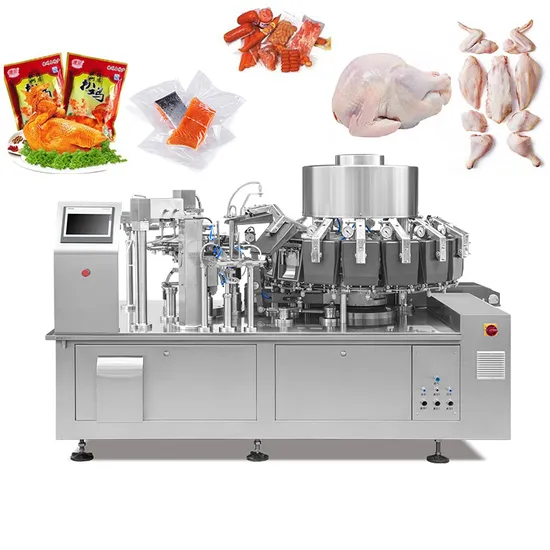

Automatic Vacuum Premade Pouch Tuna Filling Machine Rotary Vacuum Packing Machine

Product Description

Product Description
1. The bag-feeding automatic packaging machine consists of two rotating bodies (filing system and vacuum system), and the vacuum system is
a continuous rotating motion.
2. Quickly change the bag specifications, and the width of the automatic bag feeding device can be automatically adiusted at one time.
3.In line with the hygiene standards of food processing machinery, the parts on the machine that are in contact with materials or packagingbags are processed with 304 stainless steel or other materials that meet food hygiene requirements to ensure food hygiene and safety.
4. Easy to operate, adopt German Siemens Plc 8 PoD (touch screen) electrical control system, friendly man-machine interface, easy to operateNo filling, no sealing, no-filling bags can be recycled without wasting bags.
5. Sealing temperature monitoring function, if the heating plate is damaged, it will automatically alarm in the touch screen.
6. The sealing method adopts instantaneous heating and water cooling, so as to achieve a smoother and more beautiful sealing
7. The vacuum chamber is engraved and miled by aviation aluminum in a computer processing center to ensure sealing and durability.
We can customize the suitable one for you according to your requiredment. Just Tell us : Weight or Bag Size required.
Product Parameters

Model	MRZK14-100	MRZK12-130	MRZK-160	MRZK10-200	MRZK10-240	MRZK10-260	MRZK10-240
Bag Width(mm)	55-100	55-130	80-160	120-200	130-240	140-260	200-300
Bag Length(mm)	80-180	80-180	80-240	150-300	150-320	150-360	150-450
Speed(bags/min)	90-100	80-90	80	10-50	10-50	10-50	10-50
Power	5kw	5kw	5kw	5kw	5kw	5kw	5kw
Dimension(L*W*H)	2800*1550*1750	2800*1550*1750	2800*2150*1800	3000*2450*1600	3000*2450*1600	3000*2450*1600	3000*2450*1600
Weight	3300kg	3500kg	2200kg	3500kg	3500kg	3500kg	3500kg

Working Process

Work Process
Safety Measures	1.No bag - no filling- no sealing, Bag opening miss- no filling-no sealing,machine alarm. 2.Machine stop or alarm when the air pressure is abnormal. 3.Error position display at the control panel 4.Control panel locate on the right side top of the machine. 5.Outside of the machine and all the parts which touch production all made by stainless steel. 6.There are several safety doors made by aluminum Profile Frame. 7.The doors are equipped with safety proximity sensors. 8.Machine surface can be washed by water and brushed by cloth.
Product Process	Station 1 Giving Bag Station2 Date Printing (option)Station 3 Opening BagStation 4 Filling and consolidate 1Station 5 Filling and consolidate 2(Option)Station 6 BufferingStation 7 Vacuum and sealingStation 8 Forming and Output
Stations are based on customer requirements for adjusting

Packaging & Shipping
Company Profile
ECHO MACHINERY COMPNAY is specialized in packing machine for 24 years. Since 2000, the factory of ECHO began to R&P pre-made packing machine.
We have a very strong team in research, design and production.
ECHO is China's largest pre-made packing machine manufacturer which covering an area of 10000 square meters, and more than 150 employees. The the annual output reached more than 1000 units. And our machine also got ISO 9001 certification, CE approval and many utility model patents.
We provide professional packing solution and do a series of service from beginning to end Our strength
1.Equipment make and assemble strictly in accordance with CE,ISO 9001(certification) standard in our own CNC.
2.24 years experience in packing industrial with good after-sale service group
3.Our professional team of research and development has got our own patent for invention
4.Professional sales and engineer team with 24 hours hot line to do design packing project, problem consulting,solution.
5.Professional engineers group as after-service team can speak English and do overseas service.
We continually design new model and improve machines and solutions to satisfy different and stringent requirements from market. Our professional pre-sales and after-sales service guarantee the complete satisfaction of the equipment. Welcome to work with us to win a mutual befinit future.
Our Customer

Our Service
Pre-sale Service1. Equipment model selection;2.according to the special requirements of customers, personalized customized products;3. Train technicians for customers free of charge;4. Free professional technical engineers to plan the site on site and design the best process and plan.5. Acceptance of the product;6. Assist the client in drafting the construction plan;Medium-sales ServicesECHO have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.After-sales Service1.One Year Warranty,As long as there is a non-human fault in a year,free re-placement parts.2.Parts Replacement,Don't worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of employees to serve you.3.Engineer Assignment,Lifelong maintance,If your equipment breaks down,we will arrange engineers to repair it.4.Online Instruction,We open online services,as long as your equipment failure,our engineers will be the first time for aone-to-one troubles hooting.5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
FAQ
Q:What's your delivery date?
A: Usually finish the production within 40 working days after your 30% advanced payment, actually needto check according our stock & production plan.
Q:Terms of payment?
A: We accept T/T,30% in advance and 70% balanced against B/L copy.
We accept L/C at sight. We accept Cash.
Q: How many days will you finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary toour technician 200USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q:What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also theirsalary 200USD one day per person.

---
