| US$15,000.00-30,000.00 | 1 Piece (MOQ) |
| STANDARDACCESSORIES: | OPTIONAL ACCESSORIES: |
| FANUC 0i mate-MD CNC system, and linear guide-way. | Umbrella plate type A. T. C with 10 tools. |
| High speed spindle unit(10000rpm). | HNC-21/22MD/FAUNC 0i MD/GT-150M/GSK-983M or KND-2000M CNC system. |
| Umbrella type A. T. C with 10 tools. | |
| Pneumatic tools clamping and releasing system. | |
| 5.5KW Servo-driver for spindle. Air cooling | |
| Air cooling. Full splash guard. | |
| Adjusting wedge and screw. | |
| Spring chuck, Tool shank, and Rivet. | |
| Interval auto-lubricating |

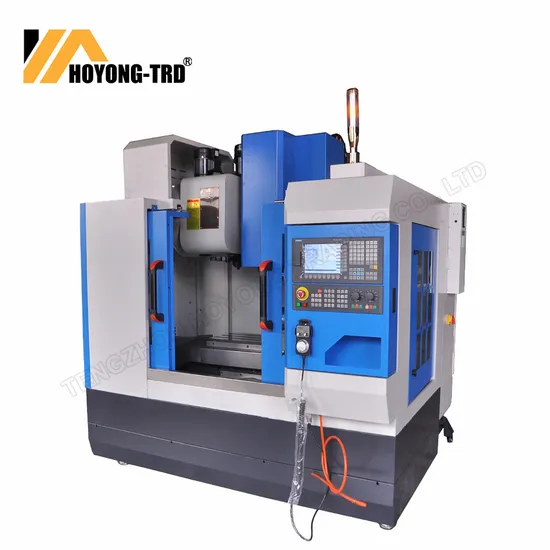

| SPECIFICATION | UNIT | XH7132A | XK7132A |
| X-axis travel | mm | 500 | 500 |
| Y-axis travel | mm | 320 | 320 |
| Z-axis travel | mm | 400 | 400 |
| Spindle nose to table | mm | 120-520 | 120-520 |
| Spindle center to column guide-way face | mm | 360 | 360 |
| High speed feeding of X,Y, axis | mm /min | 18000 | 18000 |
| High speed feeding of Z axis | mm /min | 18000 | 18000 |
| Feeding speed | mm /min | 1-4000 | 1-4000 |
| Size of table | mm | 800×320 | 800×320 |
| Max. loading capacity of table | kg | 300 | 300 |
| T-slot NO./width /distance of table | 3/14/100 | 3/14/100 | |
| Spindle max. speed | rpm | 10000 | 10000 |
| Main motor rated power | kw | 3.7 | 3.7 |
| Spindle nose taper | BT30 | BT30 | |
| Max. diameter of tools | mm | Φ100 | Φ100 |
| Max. length of tools | mm | 200 | 200 |
| Max. weight of tools | kg | 5 | 5 |
| Time of changing tools | s | 6(Umbrella)/2(Round) | |
| Positioning accuracy of X/Y/Z axis | mm | 0.01 | 0.01 |
| Re-positioning accuracy of X/Y/Z axis | mm | 0.006 | 0.006 |
| Pneumatic press | MPa | 0.6 | 0.6 |
| N.W | kg | 2500 | 2300 |
| Overall dimension | mm | 1600×1840×2110 | 1600×1840×2110 |
