Hot Selling MD30 High Precision Lathe Drilling Milling Machine

Product Description

Product Description

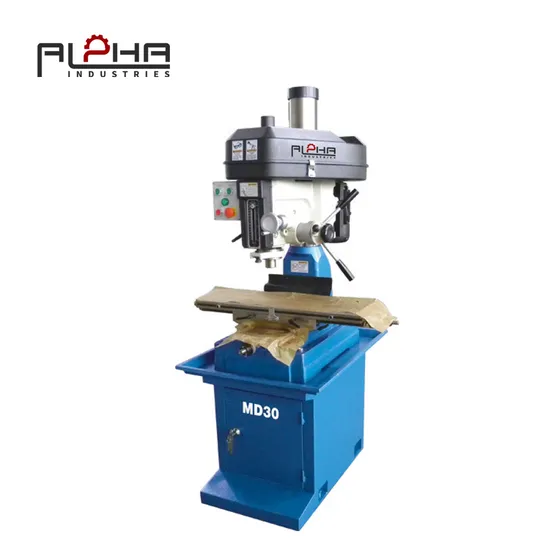

High Precision Vertical Drilling Milling Machine MD30
Product Parameters

Model NO.	MD30	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	950x760x1150mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Technical Parameters
Model No.	Unit	MD30
Max. drilling capacity	mm	iron: 35 steel: 28
Max. end milling capacity	mm	20
Max. face milling capacity	mm	76
Work table size	mm	730x210
T-slot size	mm	14
Cross travel	mm	210
Longitudinal travel	mm	500
Head stroke	mm	300
Taper of spindle bore		MT3 or R8 or MT4
Spindle stroke	mm	120
Max. distance spindle to table	mm	440
Distance between spindle to column	mm	198
Step of spindle speeds		12
Range of spindle speeds	rpm	75-1600
Headstock tilted left & right	°	±45
Spindle box swivel degree	°	360
Motor	W	1500 1450rpm
Packing size	mm	950x760x1150
N.W.	kg	300
Standard Accessories
Drill chuck	Drawbar	Arbor
Toolbox & tools
Optional Accessories
Keyless drill chuck	MBV100 milling vise	Doulbe speed motor
Tapping assembly	Power feed	58pc clamping kits
Coolant system	Halogen work lamp	Digital readout
Collet chuck	Stand & tray

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
