ISO/CE/SGS Heavy Duty Wire Rope Hoist Single Girder Eot Overhead Crane

Product Description

Product Display 1 ton 2 ton 3 ton 5ton 10ton 15 ton 20 ton workshop warehouse bridge crane monorail electric single girder overhead crane
Single girder top running cranes utilized for medium to heavy fabrication. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required.
The top running configuration is best used in cases where the end user has issues with headroom. The most space efficient configuration is the double girder, top running crane system.

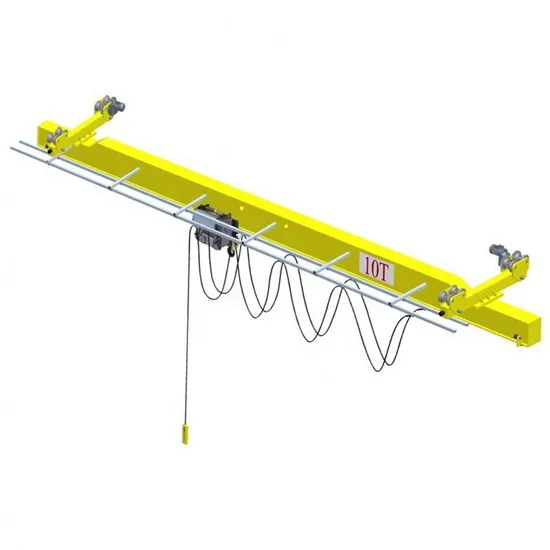

Electric single girder overhead crane is composed of girder weld by steel plate andI-beam ,end girder, electric hoist and travelling mechanism. The electric hoist runs along the lower flange of the I-beam of the girder to accomplish article hoisting. It features light structure and easy installation and maintenance
Product Advantage Main Features of HD Model Crane:
1). Single welding box girder
2). DIN/FEM standard deflection
3). Whole length CNC cutting for complete web plate, high deflection accuracy
4). High quality automatic welding and NDT inspection
5). Shot-blasting Sa2.5 for complete girder after welding, stress release
6). High tension bolts mounting between girder and legs, life time safety connection
7). Compacted gear motor driving, stepless control, harden gear, safety disc brake IP55
8). High protection class IP55, F class, 40% ED
9). Excellent driving properties, stepless control, smoothly moving
10). All hoist and crane movements are independent and can be run simultaneously.

Product Parameters
TECHNICAL DATA

Condition	New
Type	Single Girder Crane
Load Capacity	0.5t to 20t
Lifting height	3 ~ 35 m or customized
Cross Speed	0~30 M/Min (VVVF)
Working Class	A3-A5
Origin	Henan, China
Working temperature	-20 ~ 45
Way to Control	Pendant Push Button / Wireless Remote Controller / Cabin
Trademark	KINO CRANES
Specification	CE, ISO
HS Code	8426112000
Safety device	Buffer,current overload protection,overload device,power failure protection
Application area	Factory,workshop,warehouse,power station,logstic,etc.

Company Profile
Packaging & Shipping
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
2. Main beams, end beams and trolley/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
3. If the size are suitable for container ship, usually by container.
4. Big size, usually by bulk ship or by container after truncation.
5. Transport ways are based on reducing cost & keep safety.

Picking Device
More Products
Q1. Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements. Please give us the information as clear as you can, so we can give our best design to suit for your demands.
Q2. How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of operation way you need.
Q3. I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
Q4. Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...
Q5: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)

---
