US$1,800.00-18,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry
Compressive Strength (For Crushing)
<320MPa
Crushing Degree
Coarse Crusher
Finished Surface
Cut Off Tool
Certification
CE, ISO, GOST, SONCAP, CCC, API, SGS
Capacity
Max:315-500t/H, Min:1-3t/H
Rotation Speed of Eccentric Shaft
Min:250r/Min, Max:330r/Min
Delivery Time
30 Days After The Down Payment
Transport Package
Standard Export Packing
Specification
depent on model
Production Capacity
500sets/Year
Product Description

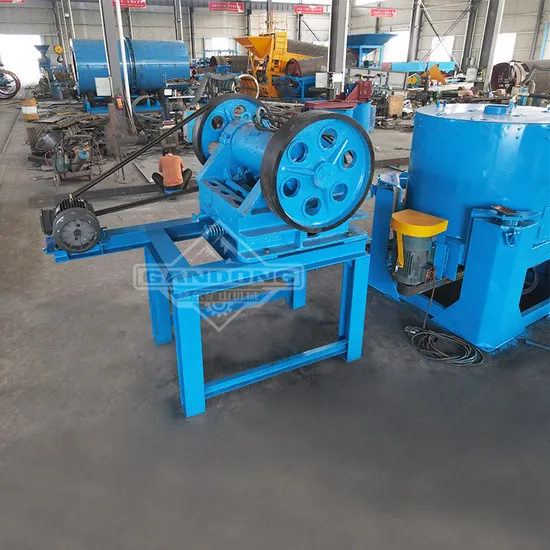

Ivory Coast 5tph Rock Gold Stone Mining Jaw Crusher Machine
Features
Big reduction ratio
Even granularity
Simple structure
Reliable working condition
Convenient repair and economic operation
Widely used for mine, smelting, building material, road, railway, irrigation works
Chemical and materials with compression strength no more than 320 Mpa.
Description
Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway, and chemical industry.
The motor transmits power through belt, drives the moving jaw do periodic motion to
the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.
FAQ
Weclome to visiting our factory to check the machines or send to my email as follow information.
1.Capacity of project?
2.Particle size of original ore?
3.What kind of mineral ores ?
4.Kindly let me know the electric power of your country , here we are 380V 50HZ 3PHASE
We will suggest you the best type and good machines for respect customers.
Why choose our company machine?
1. We are factory (NOT Dealer)
All machinery from Well-tech international equipment Mining Machinery Manufactory are made by ourselves, No trade company make
Commission(many trade companies do not produce the machinery),the lower price with the same goods, good quality, after service can be assured (after service of trade companies will get help from factory).
So please buy from factory
2. We will do our best to satisfy every customer's needs
Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.
3. Training & service
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
4. If you are new for this business, I will help you
Many thanks for your trust; we can provide you with the pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on
5. We will recommend a suitable type for you and send you a best quotation
Our Services
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
Technical Specifications
Type | Feed Opening (mm) | Max. Feeding Size (mm) | Adjusting Range Of Discharge Opening (mm) | Capacity (t/h) | Rotation Speed Of Eccentric Shaft (r/min) | Motor Power (KW) | Total Weight (t) | Dimensions (mm) |
PE-150*250 | 150*250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.6 | 720*660*850 |
PE-200*300 | 200*300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1 | 910*750*990 |
PE-200*350 | 200*350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.3 | 1000*870*990 |
PE-250*400 | 250*400 | 210 | 20-60 | 3-13 | 300 | 15 | 2.8 | 1300*1090*1270 |
PE-400*600 | 400*600 | 340 | 40-100 | 15-40 | 275 | 30 | 5.7 | 1730*1730*1630 |
PE-500*750 | 500*750 | 425 | 50-100 | 20-70 | 275 | 55 | 10.3 | 1980*2080*1870 |
PE-600*900 | 600*900 | 520 | 65-130 | 50-150 | 250 | 75 | 15.5 | 2290*2290*2400 |
PE-750*1060 | 750*1060 | 630 | 80-140 | 80-220 | 250 | 110 | 28 | 2660*2430*2800 |
PE-870*1060 | 870*1060 | 660 | 200-260 | 290-336 | 250 | 110 | 31.5 | 2810*2430*2800 |
PE-900*1060 | 900*1060 | 685 | 230-290 | 160-400 | 250 | 110 | 33 | 2870*2420*2940 |
PE-900*1200 | 900*1200 | 860 | 230-290 | 200-250 | 200 | 132 | 31 | 3380*2870*3330 |
PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480*3876*3330 |
PE-1200*1500 | 1200*1500 | 1100 | 350-360 | 250-400 | 180 | 160 | 51 | 4200*3300*3500 |
PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200*1530*1060 |
PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380*1750*1540 |
PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 37 | 7 | 1560*1950*1390 |
PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 330 | 45 | 8.5 | 2140*1660*1500 |
PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 300 | 75 | 11 | 2720*1950*1600 |
if you are interested in our products,please send me message in below blank,we will reply within 24hours,or call us.thanks your time.
>>
