CNC Milling Machine Vmc1160 Metal Vertical Machining Center

Product Description

Product Description
Products Description:

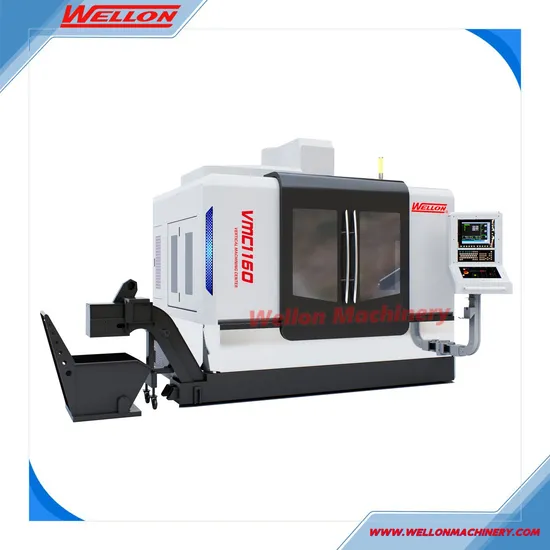

CNC milling machine VMC1160 metal vertical machining center
Main configuration & accessories:
1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as option;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB and Internet interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Technical parameter:

Item	Unit	VMC1160
Capacity
X axis travel	mm	1100
Y axis travel	mm	600
Z axis travel	mm	600
Spindle nose to worktable	mm	120-720
Spindle center to column	mm	650
Leadscrew size
Leadscrew diameter	mm	Φ40
Linear guideway width	mm	45/45/45
Worktable size
Worktable Length	mm	1200
Worktable width	mm	600
Max loading capacity	kg	800
Spindle
Spindle speed	rpm	8000
Main motor power	kw	7.5/11
Spindle taper		BT40
Feeding system
Fast moving speed (X/Y/Z)	m/min	36/36/36
Cutting speed	mm/min	1-10000
Feed motor power	kw	3/3/4.5
Tool Magazine
Capacity	pcs	Arm 24
Max tool diameter	mm	120
Max tool weight	kg	8
Max tool length	mm	300
Accuracy
Positioning accuracy	mm	0.008
Repeat accuracy	mm	0.005
Machine dimensions
Length	mm	3300
Width	mm	2400
Height	mm	2800
Weight	kg	6900

Standard Accessories:
Fanuc 0i MF control system
Taiwan Spindle: 8000rpm
X/Y/Z axes: Fanuc servo drive motor
Main motor: Fanuc spindle motor
24 tools Disc type
USB for information transfer
Rough cutting of thread
Full closed cover
Automatic lubrication
Coolant system,
work lamp,
Tri-color indication lamp,
Air gun,
Heat exchanger in cabinet,
3-Axis linear guideway from Taiwan Hiwin,
Ball leadscrew from taiwan Hiwin,
Optional accessories:
Automatic chip conveyor & chip bucket (Chain type)
Automatic chip conveyor & chip bucket (Screw type)
Spindle direct driven, speed 12000 rpm
Spindle oil cooling
Spindle center water spray
Nitrogen balance cylinder
Air conditioner for electricity cabinet
4th Axis or 5th Axis
