Hcvac Ceramic Aluminum Metallizing Vacuum PVD Coating Machine Line Gold Plating Machine

Product Description

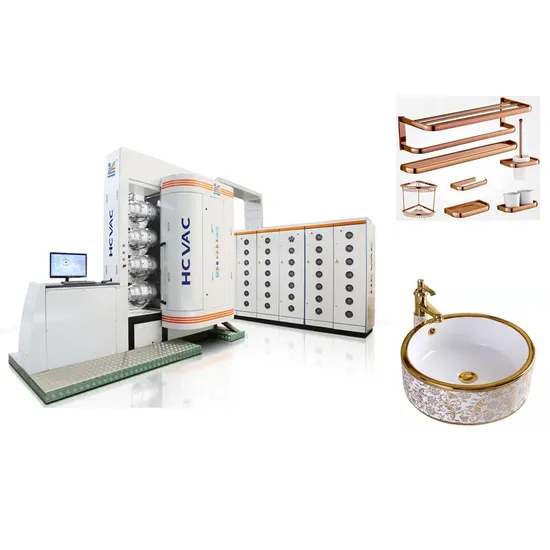

Ceramic/Porcelain Gold PVD Coating Machine
(Also suitable for glass,metal,steel,mosaic,crystal etc.)
1.Brief introduction:
The machine can coat ceramic tiles,ceramic cups, plates, tableware,porcelain tiles,ceramic mosaic, floor tiles,glass mosaic.glass tiles. Besides ceramic,you can also coat metal,glass products.
The machine is used to deposit TiN(gold color) ,Ti (silver color) and other coating on ceramic products. Thus it can replace the traditional paint gold, enhence the adhension, saves cost and improve production efficiency.
2.Detailed description:
This is an ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy,easy operation, low cost, large productive capacity, etc.
The principle of vacuum electric arc ion coating is intergrating cold cathode, arc discharge Self-sustained light, ionization plating material with pulse technique to improve depostion particle energy and survival rate and the properties of the film. It can coat on the surface of the metal as well as nonmetal.



Features
You can get all kinds of colors and patterns
Applied industry:It can be used to coat metal film, titanium nitride titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel,chromium, copper and other compounds film, multi-layer super-hard film,nitrogen-doped titanium film and the alloy film, titanium nitride mixed with gold-plated titanium nitride film.
Our company focusing on improve roundness electronic arc evaporation source and develop high performance rectangular flat electric arc evaporation source.meanwhile, we had install it into new machine.
Parameters:

Model (customerize)	HCCA-1215	HCCA-1818	HCCA-2236	HCCA-2545	HCCA-2270
Dimension	D1250*H1500mm	D1800*H1800mm	D2200*H3600mm	D2500*H4500mm	D2200*H7000mm
Loading ability	1000*1300mm MAX	1500*1500mm MAX	Sheet:1250*2500mm 4 pieces/Batch	Sheet:1250*2500mm 6 pieces/Batch	Sheet:1250*2500mm 10 pieces/Batch
Machine Size	L5*W5*H2M	L6*W6*H2.5M	L6*W8*H11.5M	L8*W8*H12.5M	L20*W8*H2.5M
Power source	Electric-arc power, Filament power, Pulsed bias power supply
Process gas control	Mass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure	Vertical top opening door or Horizontal open front door, pump system postposition, double water cooling
Vacuum system	Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)
Workpiece baking temperature	Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Measure mode	Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control mode	Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark	We can design the dimension of the equipment according to customer's special technique requirement.

Application

Company Profile
The coating experts of your own company:Full set solution for the coating production.
Factory workshop:

Certifications

Packaging & Shipping
Clients
Our Advantages
Why Choose HCVAC system? Over 3000 plants installed worldwide Quick cycle times High production capability with low energy consumption More up time due to ease of loading/unloading and low maintenance High productivity with only a single operator Steel process chambers, built to last Eco-friendly Space saving design PVD option available on all plants 1 year component warranty and 25 years minimum guaranteed working life Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
