Welcome to visit

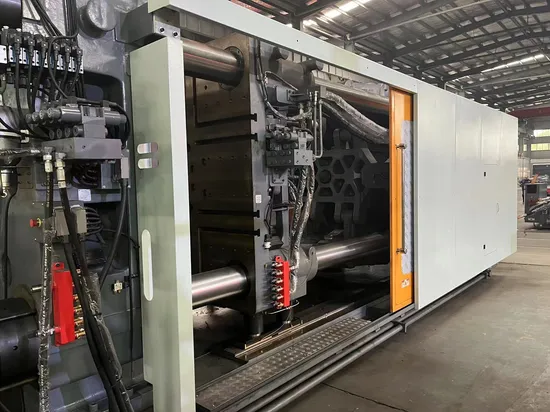

100% New and Servo Plastic Injection Machine

Negotiable 1 SET (MOQ)

Basic Info.

Model NO.
LTY-HD900L
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
900T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years

Product Description

SPECIFICATION LTY9000
A B C D
INJECTION UNIT
SCREW DIAMETER mm 90 100 110 115
SCREW L/D RATIO L/D 25.5 23 20.9 20
SHOT VOLUME(THEORETICAL) cm3 2988 3689 4464 4879
INJECTION WEIGHT(PS) g 2719 3356 4062 4440
INJECTION RATE g/s 590 729 880 960
INJECTION PRESSURE MPa 216 176 146 133
SCREW SPEED rpm 100
CLAMPING UNIT
CLAMP FORCE KN 9000
OPEN STROKE mm 1010
SPACE BETWEEN TIE BARS(W*H) mm 1080x1080
MAX.MOULD HEIGHT mm 1100
MIN.MOULD HEIGHT mm 400
EJECTOR STROKE mm 325
EJECTOR FORCE KN 210
OTHER
MAX.PUMP PRESSURE MPa 16
PUMP MOTOR POWER kW 37+45
HEATING POWER kW 63.9
MACHINE DIMENSION(L*W*H) m 11.82x2.51x3.13
OILTANK CUBAGE L 1700
MACHINE WEIGHT t 50
