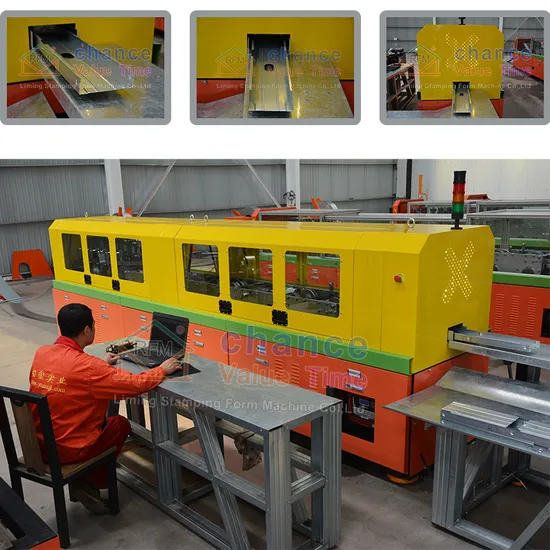

Hebei Liming Automatic Steel Frame Roller Forming Machine Manufacturers Direct

Product Description

Using professional-grade industrial computer CNC automatic control, it has the characteristics of wide
application range,high product precision, high degree of automation, material saving, and high degree of automation.
It is designed according to the customer's requirements for continuous innovation and structural form of
prefabricated buildings in the current market. Manufacture special roll forming machine equipment with special requirements.
Advanced Features:
* Reduce the material waste
* Speed can reach 50m/min
* Prevent material scratch
* Easy to adjust the material width
* PLC Touch Screen Control allows easy condition setting
* With air cooling, can be applied to the vast majority of countries and regions

Profile Size	60mm--200mm
Material Thickness	0.6-1.5 mm (G300-G550 zinc plated, aluminumzinc plated)
Material Width	182-183 mm
Maximum Line Velocity	2880 m/h
General Production Efficiency	300-700 m/h
Main Unit Power	7.5 kw
Voltage	380V, 50Hz, 3 phase (can be customized)
Hydraulic Power	5.5 kw
Equipment Total Power	16.7 kw
Hydraulic Cylindar Volumn	120 L
Adjustment of Oil Pressure	Computer Setting
Main Unit Remote Control	Standard
Punching Dies	Dimple hole, chamfer cut, web noth, lip cut, service hole, swage, shear, bolt hole
Product Accuracy	0.5 mm
Inkjet Printer	Standard
Machine Weight	5000 kgs
Machine Color	Customer Demand
Decoiler	Load 2000 kgs, auto decoiling, 3.7 kw

Packaging & Shipping

Certifications


Our Advantages

Q: Can you customize the machine from your company?
A: Of course, we can manufacture the machine according to your customized size demand.
Q: How is the quality? Is there any department related to quality control?
A: All raw materials we use are quality controlled. Workers will take care of every detail when handling production and
packaging.The quality control department is responsible for the quality of each process
Q: Is the packaging form?
A: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully
meet export packaging standards.
Q: How about after-sales service?
A: TM is online 24 hours a day, and you can also contact them via email, Skype, MSN, whatsapp. and many more Two-year warranty and
parts replacement.

---
