Bottle Cap Making Machine

Product Description

Product Description

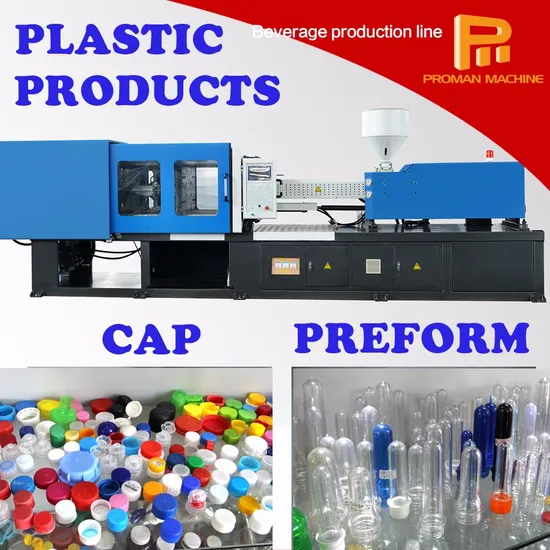

Bottle Cap Making Machine
Servo energy saving injection molding machine output power changes with the loading changing. There's no extra waste of power. The motor doesn't work while cooling, electricity consumption is 0. As compared with the tradition injection molding machine, the servo machine can save electricity 20%-80% that brings you excellent profit.
-Excellent energy saving
As compared with the traditional fixed pump injection molding machine, it saves energy 20%-80% under the same working condition.
-Excellent injection molding stability
The pressure and flow of servo drive system applies closed-loop control, as compared with the traditional injection molding machine, it greatly increases repeatability precision of injection molding.
-Fast response
Fast response servo drive, the start time faster than that of the traditional injection molding machine by 50%.
-Environmental friendly
The complete machine runs under low noisy, low speed operation and quite.
-Constant oil temperature
The servo motor output hydraulic oil according to proportion to avoid extra heat. Even the hydraulic oil need not to be cooled to realize excellent water saving.

INJECTION UNIT			A			B
Screw diameter		mm	54			56
Shot size(theoretical)		Cm³	720			770
Shot weight		g	650			690
Injection pressure		Mpa	190			178
Injection rate		g/s	200			215
Screw L/D ratio		L/D	22.5			21.6
Screw speed		r.p.m	0-180
Nozzle Diameter		Srmm	20
CLAMPING
Clamp tonnage		KN	2600
Toggle stroke		mm	530
Mould Thickness		mm	200-550
Space between tie-bars		mm	554X554
Ejector stroke		mm	160
Ejector tonnage		KN	70
Ejector number		Piece	9
Hole Diameter		mm	160
OTHERS
Heat power		KW	15.5
Max. pump pressure		MPa	16
Pump motor power		KW	25
Valve Size		mm	16
Machine dimension		m	6.1X1.7X1.8
Machine weight		t	8
Oil tank capacity		L	350

---
