Universal Hydraulic Radial Arm Drilling Machine

US$9,000.00

1 set

US$8,700.00

2 set

US$8,400.00

3+ set

Basic Info.

Model NO.

Z3050X16/1

Controlling Mode

Artificial

Number of Shaft

None

Hole Diameter

50-100mm

Automatic Grade

Automatic

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

Max. Drilling Capacity

50mm

Distance Spindle Axis to Column

350-1600mm

Diameter of Column

350mm

Spindle Taper

Mt5

Spindle Travel

315mm

Spindle Speeds Range

25-2000mm

Spindle Speeds Series

Dimension of Worktable

630X500X500

Main Motor Power

4kw

Overall Size

2500X1060X2650

Transport Package

Plyw/Case

Specification

Trademark

UNI-TECH

Origin

Shandong

HS Code

84592900

Production Capacity

60PCS/Per Month

Product Description

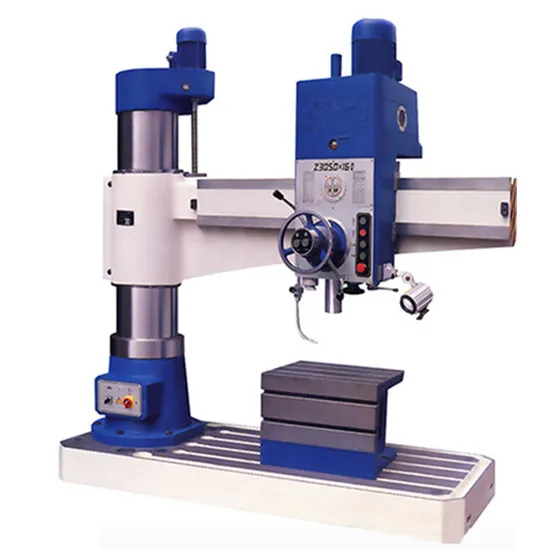

universal hydraulic radial arm drilling machine
Main features:
1. With wide range of speed and feed, with manual \power and fine feeds. The feed of machines are very easily engaged and disengagedat any time
2. With safe and reliable feed safety machine, all parts easy operation and change
4. All controls centralized on the head stock easy operation and change.Clamping for assemblies and speed change of spindle achiered by hydraulic power, cmle is sensitna owet nelile
5.Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality.

Model	Z3050×16/1	Z3040×16/1	Z3080X25
Max. Drilling capacity (mm)	50	40	80
Distance spindle axis to column generating line (mm)	350-1600	350-1600	500-2500
Diameter of column (mm)	350	350	550
Spindle taper	MT5	MT4	MT6
Spindle travel (mm)	315	315	450
Spindle speeds range (r/min)	25-2000	25-2000	16-1250
Spindle speeds series	16	16	16
Range of Spindle feeds (r/min)	0.04-3.2	0.04-3.2	0.04-3.2
Spindle feeds	16	16	16
Max. Distance spindle nose to working surface of base (mm)	320-1220	350-1250	550-2000
Dimension of worktable (mm)	630×500×500	630x500x500	1000×800×560
Dimension of base (mm)	2400×1000×200	2400x1000x200	3530×1400×300
Overall Size (mm)	2500×1060×2650	2500x1060x2650	3730×1400×3790
Power of Main motor (KW)	4	3	7.5
G.W/N.W (kg)	3650/3400	3650/3400	15000/11000
Packing dimension (cm)	260x112x260	260x112x260	416×165×248/
Packing dimension (cm)	260x112x260	260x112x260	382×63
