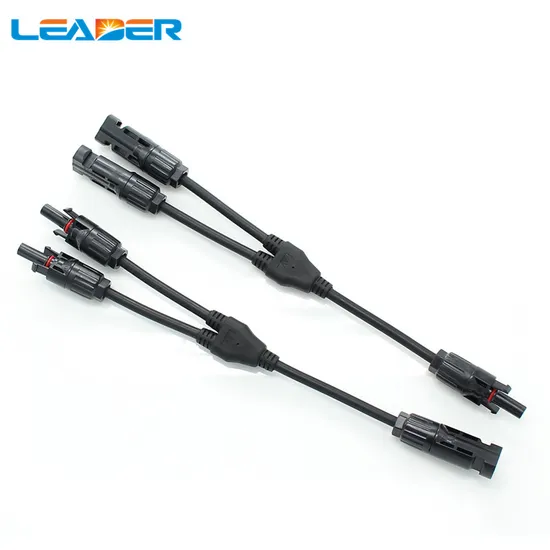

IP67 Waterproof 2 in 1 Y Branch Connector PV Solar Panel 2y Connector for Solar System

Product Description

Product description
1. Photovoltaic branch for safe and simple parallel or series-parallel connection of PV-Module.
2. Due to highly robustness, UV resistance, the touch protection a high grade connection is guaranteed for many years.
3. Acc. To DIN V VED 012-3/12.6, UL1703 standard.
4.Removal will not cause any harm to plugs.
5.Load capability with big current and high voltage
6.Good ability of resistance and machine shocking
7.Lower contact resistance

Rated Current	22A(2.5mm2),30A(4mm2,6mm2)
Withstanding Voltage	1000V DC(TUV),600V(UL)
Contact Resistance	≤5mΩ
Dia. of pin or socket	4mm
Protection Class	Class II
Temperature Range	-40° C ~ +85°C
Protection Degree	IP2X,unmated;IP67,mated
Wire Size Range	2.5/4/6mm2(14AWG,12AWG,10AWG)
Un mating Force	200 Newton
Insulation Material	PC/PA
Contact Material	Copper,tin plated
Flame Class	UL94-V0 or UL94-5VA
Locking system	Snap in

Our sevices:
Upon receipt of our products, if you are not satisfied with the quality or concerned, you can return it within 3 days after receiving our products , but only if products need to keep intact and original; any returns arising from the cost of freight and customs , will be borne by the buyer, buyer should be responsible to assume, otherwise, we have the rights to refuse to refund.
All in all, we believe our quality and service will satisfy your needs, we do not wish to see similar things happen, but onece them occurred, please contact us immediately, we will make every effort to resolve the problem and make you satisfied at the first time.
We will give you a best service.
1) Reply inquiry within 24 hours.
2) Answer your detailed question.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which item you are interested in so that the reasonable price could be provided soon.
Company information:
LEADER ENERGY is a energy enterprise,located in SHENZHEN, China,specializing in R&D,manufacturing and marketing PV connectors,PV junction boxes and PV assembles etc;with an integrated utilization from solar modules,solar energy appliance to on off-grid solar power generation systems, and by the products R&D,mold design,production,sales through-train service.

LEADER Company adheres to self R&D,strict detection standards and perfect detection system, modernization management approaches and excellent talent teams,hold the belief of 'survive for excellence,development for innovation',insist on being professional,large-scale brand.

---
