Product Details
Product Description
Product Description
Product Details
Black annealed wire
is also known as oil painted black iron wire or black mild steel wire, which is offered in the form of coil wire, tie wire or cut into straight wire.
Cold drawn wire Black wire annealed wire
GI wire

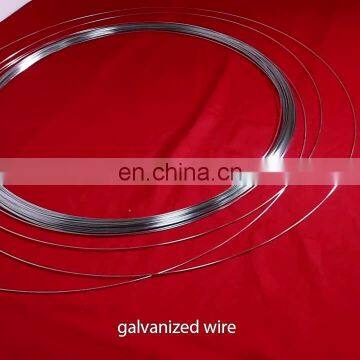

Hot-dipped galvanized wire
Electro galvanized wire
PVC coated GI iron wire
Core wire diameter 0.8mm 1.0mm 1.4mm 2.0mm 2.5mm
Diameter after coated 1.2mm 1.4mm 2.0mm 3.0mm 3.5mm
Product Parameters
Name
| Black annealed wire gi wire
| black annealed cut iron wire
| tie wire binding wire pvc wire
|
Wire Guage
| BWG8 ~ 22#
| AWG8 ~ 22#
| SWG8 ~ 22#
|
Wire Diameter
| 4mm ~ 0.71mm
| 4mm ~ 0.71mm
| 4mm ~ 0.71mm
|
Tensile Strength
| 500~980 N/mm2
|
|
|
Coil weight
| 25kg, 50kg, 100kg, 200kg in normal coils 400~500 Kg or by Z2, Z3 coils.
|
|
|
GI wire gauge
High tensile GI wire Q195 grade GI wire for mesh
GI wire weight
Wire Gauge
| SWG (mm)
| BWG (mm)
| Metric(mm)
|
8
| 4.06
| 4.19
| 4.00
|
9
| 3.66
| 3.76
| 3.80
|
10
| 3.25
| 3.40
| 3.50
|
11
| 2.95
| 3.05
| 3.00
|
12
| 2.64
| 2.77
| 2.8
|
13
| 2.34
| 2.41
| 2.50
|
14
| 2.03
| 2.11
| 2.10
|
15
| 1.83
| 1.83
| 1.80
|
16
| 1.63.
| 1.65
| 1.65
|
17
| 1.42
| 1.47
| 1.40
|
18
| 1.22
| 1.25
| 1.20
|
19
| 1.02
| 1.07
| 1.00
|
20
| 0.91
| 0.89
| 0.90
|
21
| 0.81
| 0.813
| 0.80
|
22
| 0.71
| 0.711
| 0.70
|
Package
Annealed wire
Inside pastic film + outside hessin bags
GI wire
inside plastic film + outside woven bags
PVC coated iron wire
1. lined with P.V.C strips and wrapped with PVC or hessian cloth
2. small coils of 50m, 100m, 150m, 200m, and so on
3. in spider packing then into cartons
Packing and Delivery
Application
GI wire for clothes hangers
GI wire for animal cages
GI wire for fruit baskets
Binding wire
GI wire for nails
GI wire for wire mesh
Recommended Products
PC strand
Steel pipe
H beam/ IPE/IPEAA/IPEAAAA
Channel steel
Wire rod
Flat steel
Why Choose Us
1. Alibaba Assessed Supplier2. Management involving in steel industry for 20 years.
3. 7x24hours professional service
4. Strategic cooperation supplier of state-owned enterprises such as CREC, CCC, etc.
5. Inspecting from the beginning of production and controlling quality strictly.
6. Free samples for customers.
