Basic Info.
Certification
CE, ISO 9001:2000, ISO 9001:2008
Automatic Level
Semi-Automatic
Electrical Components
Schneide Te, France
Max. Cutting Thickness (mm)
4 mm
Dimension(L*W*H)
4500*2000*2400
Blade Length (mm)
4050 mm
Max. Cutting Width (mm)
4000 mm
Machinery Test Report
Provided
Transport Package
Professional Packag
Production Capacity
30 Sets/Month
Product Description
Note: Dear customers, machines due to different parameters, configuration and other requirements will produce different prices, please consult customer service.
To view more products, please click on product keywords...
Main Products |
Press Brake | Laser Cutting Machine | Bending Center |
Shearing Machine | Handheld Laser Welder | punch and shear machine |
Rolling Machine | grooving machine | punching machine |

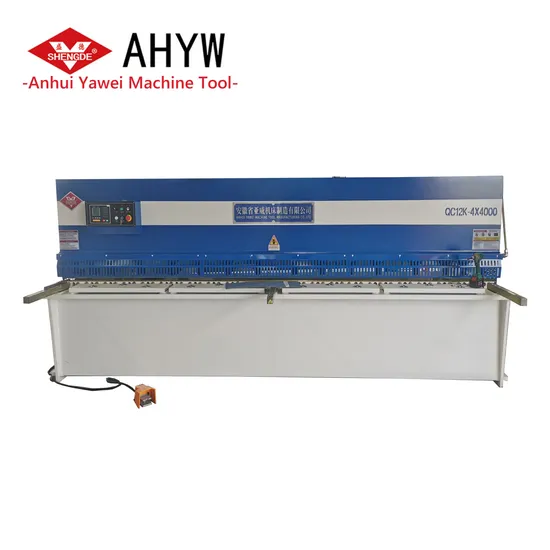

4mm 6mm Hydraulic Swing Beam Shear Electric Steel Shearing Machine
Model: QC12K 4x4000
Anhui Yawei QC12K Series Swing Beam Sheet Metal Shear is the most common cutting machine in steel plate fabrication workshop, reasonable cutting gaps help better cutting edges results, NC positioning&program cutting controller can determine shearing flanges to meet your metal cutting jobs.
Model | QC12K-4X4000 |
Cutting Thickness | 4mm |
Cutting Length | 4000mm |
Throat Depth | 150mm |
Details Images ESTUN E21S CONTROLLERIntegral factor programmable freelyAutomatic positioning controlSpindle allowance offsetInternal time relayStock counterBackgauge position display, resolution in 0.05mm ALLEAD PUMPGermany world famous brand for hydraulic pump. It provides great power for the whole system and ensures the pump service life and lower working noise.HYDRAULIC SYSTEMPARKER hydraulic piping and fittings from USA. Schneide ELECTRIC COMPONENTFrance schneide electrics with high stability. It can perform well even the electricity is not stable.And customers can easily get the replacement anywhere in the world.HOLD DOWN CYLINDERS Hold down cylinder for hydraulic shearing machine.BLADES GAP ADJUSTMENTRapid adjustment mechanism for rearranging blade clearance is easy to operate by hand, realizing stepless adjustment of blade clearance. Technical ParametersCompany Profile
>>
