US$15,000.00-25,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Liquid with Suspended Solids, Liquid
Application Area
Daily Chemical
Main Material
Stainless Steel
Material Processed
Toothpaste
Range of Spindle Speed(r.p.m)
1 - 65 r.p.m
Function
Mixing, Homogenizing, Emulsifying
Electric Cabinet
Buttons/PLC Control
Max. Loading Volume (L)
500 L
Core Components
Motor, Pressure Vessel, Pump, Bearing, Homogenizer
Lifting System
Hydraulic Lifting with safety Protection
Operating type
Continuous Operating
Transport Package
Plywoode Case Packing
Specification
1950*750*(2200~3000)
Production Capacity
30sets/Mouth
Product Description

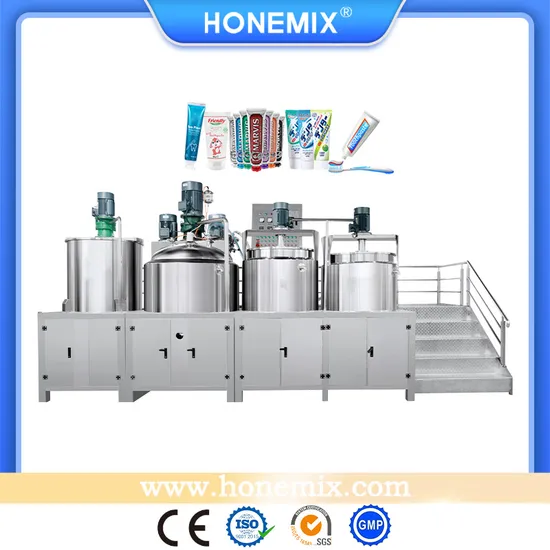

Hone Stainless Steel Fixed Toothpaste Vacuum
Homogenizer Emulsify Mixing Machine This lab vacuum mixer used for dispersion, mixing, emulsifying, homogenizing, dissolve in the lab for making sample products. In the condition of vacuum, we can see the whole processing of mixing, homogenizing, emulsifying of materials through the glass reactor. Detailed Photos Vacuum emulsifying mixer machine consist of Water and Oil pot, Main emulsifying tank, Vacuum system, Tilting discharge system, Hydraulic lifting system(OPTION), Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics products.
| Item | description | 100 | 200 | Remark |
| Emulsifying pot | Design Volume(L) | 120 | 240 | |
| Capacity(L) | 100 | 200 | SUS304&316L |
| Scraper Stirring Power(kw) | 2.2 | 3 | Famous brand motor |
| Scraper Stirring Speed(rpm) | 0-63 | 0-63 | Frequency converter |
| Homogenizer power(kw) | 3 | 4 | Famous brand motor |
| Electrical heating power(kw) | 6 | 6 | |
| Homogenizer speed (rpm) | 0-3500 | 0-3500 | Frequency converter |
| Water pot | Design Volume(L) | 96 | 200 | |
| Capacity(L) | 80 | 160 | SUS304&316L |
| power(kw) | 0.75 | 1.1 | Famous brand motor |
| speed(rpm) | 1400 | 1400 | |
| Electrical heating power(kw) | 9 | 9 | |
| Oil pot | Design Volume (L) | 48 | 96 | |
| Capacity (L) | 40 | 80 | SUS304&316L |
| power (kw) | 0.75 | 1.1 | Famous brand motor |
| speed (rpm) | 1400 | 1400 | |
| Electrical heating power (kw) | 6 | 6 | |
| Dimension | Emulsifying (Length X Width X Height)mm | 1950×750×(2200~3000) | 2000×800×(220~3000) |
| Water boiler and Oil boiler (Length X Width X Height) | 1200×750×1250 | 1500*800*1400 |
Factory Display
