Diamond Segments for Circular Saw Blade in Quarry and Factory

Product Description

Diamond Segments for Circular Saw Blade in Quarry and Factory 1. Products Description

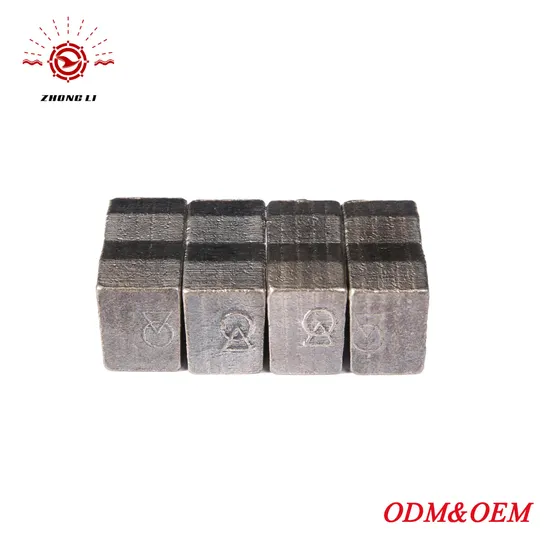

Zhongli diamond segment can be used for cutting all kinds of stone, like granite, sandstone, marble, limestone, asphalt. The diamond segments can be customized by your requirements. The suitable formula of segments can be made according to your parameter, such as stone hardnes abrasiveness, machine parameter, etc.
Advantage:
· Stable quality with reasonable price
· Low energy consumption and long life
· SGS/ISO certificate
· OEM/ODM
· Strictly raw material source and production quality control ensure stable quality.
2. Specification

Item	Diameter (mm)	Length (mm)	Thickness (mm)	Height (Flat) (mm)	Height(Arc Type) (mm)	Height(Type B) (mm)	Number
SGB900	900	22/24	6.8/7.4	12/15/20	This types are available as request	11.7/12.2 14.2/14.7	64
SGB1000	1000	22/24	7.2/7.8	12/15/20		11.7/12.2 14.2/14.7	70
SGB1200	1200	22/24	7.4/8.0	12/15/20		11.7/12.2 14.2/14.7	80
SGB1400	1400	22/24	8.0/8.6	12/15/20		11.7/12.2 14.2/14.7	92
SGB1600	1600	22/24	8.0~8.6/8.6~9.2	12/15/20		11.7/12.2 14.2/14.7	108
SGB1800	1800	22/24	9.2~9.6/9.8~10.2	12/15/20		11.7/12.2 14.2/14.7	120
SGB2000	2000	22/24	10.2/10.8	12/15/20		11.7/12.2 14.2/14.7	126
SGB2200	2200	22/24	10.2/10.8	12/15/20		11.7/12.2 14.2/14.7	136
SGB2500	2500	22/24	11.4/12.0	12/15/20		11.7/12.2 14.2/14.7	140
SGB2700	2700	22/24	12.0/12.6	12/15/20		11.7/12.2 14.2/14.7	140
SGB3000	3000	22/24	14.0/14.6	12/15/20		11.7/12.2 14.2/14.7	160
SGB3500	3500	22/24	15.0/15.6	12/15/20		11.7/12.2 14.2/14.7	180
Other sizes are also available

3. Products Details
4. Process details

5. Certification
6. FAQ:
Q1:Are you a factory or trading company?
A1:We are factory. If you have time, welcome to visit our factory.
Q2. How is your quality?
A2. We have a very seriously control system. We guarantee the high performance of our products.
Q3. If we need technical support, can you offer us?
A3. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product management staff, engineers and technicians.
Q4. How can we be your agent in our country?
A4. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.
Q5. Do you offer free samples?
A5. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
Q6. Is there cheap shipping cost to import to our country?
A6. For small order, express will be the best choice; for bulk order, sea way is best but take longer time; for urgent orders, we suggest shipment by air or by express.
Q7. When you can reply to me when I send you an Inquiry?
A7. We promise to reply within 24 hours on receipt of your inquiry on working days.
7. Contact Mark Sue
Contacts: +8618850549527

---
