Factory Price Indoor CATV House Amplifier Optional with Return Path

Product Description

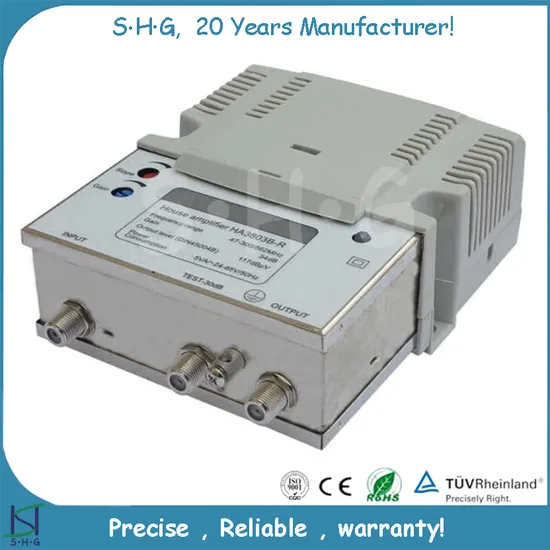

SHG HA3803 series CATV house amplifiers are designed for amplifyin and distributing TV signals in CATV networks.
House amplifiers (in text-amplifiers) are intended for amplifying and distributing TV signals in cable TV networks.
The amplifier are produced with built-in power supply for powering from mains ~198--250V and for remote powering from line ~24--65V(depending on type). The amplifiers have one input and two output.
The amplifiers are provided for plug-in return path amplifier and interstage attenuator.
Features
1. Type: House amplifier
2. Gain Adjustment: 20dB;
3. One input and two output;
4. Plug-in return path and interstage attenuator.
House amplifiers are designed intended for amplifying and distributing TV signals in cable TV networks.
The HA3803 series house amplifiers are made with built-in power supply for powering from mains ~198--250V and for remote powering from line ~24--65V(depending on type).
The HA3803 house amplifiers have one input and two output.
The HA3803 house amplifiers are provided for plug-in return path amplifier and interstage attenuator.
Specification

Type		HA3803A-R		HA3803B-R
Frequency Range	forward path		47/87*-862MHz
	return path		5-30/65*MHz
Gain	forward path		32dB**
	return path with RPxx-01/ RAxx-01		20/-1.5dB
Frequency Response**			± 0.5dB**
Gain Adjustment			20dB
Slope Adjustment Typical			18dB
Maximum Output Level IMD3=60dB(DIN45004B)			117dBµ V
Maximum Output Level IMD3=60dB(EN50083-3)			111dBµ V
Maximum Output Level IMD2=60dB(EN50083-3)			114dBµ V
Input and Output Return Loss***			14dB
Noise Figure			6dB
Test Point Attenuation			-30dB
Power Consumption	mains powering		7VA/~198- 250V/50Hz		-
	remote powering		-		5VA/~24-65V/50Hz
AC Pass Current (through IN and OUT, switchable)		-		0.4A max
Operating Temperature Range		-20~+50
Dimensions		107× 148× 53mm
Weight(packed)		0.66kg		0.43kg
