0.5 Micron Stainless Steel 304/316 4 Bag Filter Housing for Animal Plant Fermentation Liquid& Animal Blood

Product Description

0.5 Micron Stainless Steel 304/316 4 Bag Filter Housing for Animal Plant Fermentation Liquid& Animal Blood

Introduction The multi-bag filter is designed to handle high-capacity filtration or large flow requirements. It offers customizable configurations with 2 to 24 bags, and a range of inlet and outlet sizes for easy connection. The design ensures adequate equipment strength and pipeline load-bearing capacity. With a quick-open mechanism, the cover can be easily removed by unscrewing the nut, making maintenance convenient. Constructed from high-quality stainless steel (304, 316L) and other materials, the multi-bag filter is ideal for large-scale filtration.
The precision of bag filter can reach 0.5um.
Key features of bag filter :
High capacity and effective filtration of large volumes of contaminants Simple operation and low-cost maintenance Clear filtration results and efficient performance

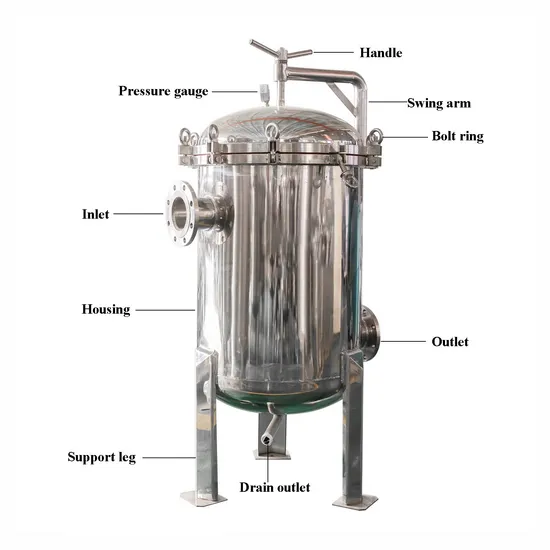

Detailed Photos Screw bolt:Stainless Steel Strengthen Bolt Spring Pressure Parts:easy to operate, better sealing, even pressure
Product Parameters

Model No.	Bag QTY	Filtering area (m²)	Max Flow (t/h)	Working pressure (Mpa)	Cylinder diameter (mm )	Total height (mm)
1P1S	1	0.25	20	0.5	220	568
1P2S	1	0.5	40		220	960
1P4S	1	0.2	10		159	568
2P2S	2	1	70		456	1572
3P2S	3	1.5	105		508	1592
4P2S	4	2	140		558	1632
5P2S	5	2.5	175		608	1788
6P2S	6	3	210		658	1854
7P2S	7	3.5	245		710	1875
8P2S	8	4	280		760	1922
10P2S	10	5	350		910	2004
12P2S	12	6	420		962	2064
14P2S	14	7	490		1012	2124
16P2S	16	8	560		1112	2146
18P2S	18	9	630		1162	2225
20P2S	20	10	700		1212	2280
22P2S	22	11	770		1366	2320
24P2S	24	12	840		1416	2358

Why crowns machinery?
★We provide genuine, cost-effective materials with full inspection support.
★We assist in developing tailored, professional filtering solutions.
★Every product undergoes rigorous quality control before shipment to ensure both quality and quantity.
★Our comprehensive production planning ensures timely and efficient delivery.
★Our responsive after-sales service is available online to address any concerns, ensuring a seamless experience for our customers.
Different Models
Stainless Steel Single Bag Filter

Sand Blasting Stainless Steel Multi Bag Filter
Movable Filter System with Cart and Pump
Jacketed Bag Filter Housing

Workshop Display
Company Profile Qingdao Crowns Machinery Co., Ltd. is located in Huangdao District, on the west coast of Qingdao, Shandong Province, China. With over 10 years of expertise in designing and manufacturing a wide range of industrial filtration equipment, we are committed to providing comprehensive, high-quality filtration solutions. Our products have been exported to numerous countries worldwide, serving customers across various industries with reliable, one-stop filtration solution.
