Product Description
Product Description

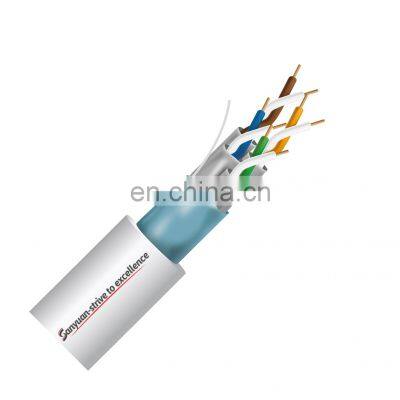

U/FTP Cat 6A Copper Cables for Indoor Applications U/FTP CAT6A 4*2*23AWG PVC Product ApplicationSuitable for structured premises cabling . For transmission of digital and analogue voice and data signals. Especially suitable for all Class EA applications. ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Ethernet 1000Base-T ,10G Base-T.(IEEE 802.3) Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s,ATM 155Mbit/s.(IEEE 802.5 ) Standards IEC/ISO 61156-5 ANSI/TIA568C.2 ISO/IEC 11801 Cable Construction Inner conductors 0.56±0.1mm BCInsulation 1.56±0.05mm PE (Skin-Foam-Skin) (thickness 0.4±0.05mm)Assembly 4 Pairs ( " S " direction )Shielding Al foil screened ( each pair screened )Drain Wire 0.4mm TCJacket 7.4±0.3mm PVC , average thickness 0.6mm, flame rate Eca Electrical characteristics Nominal Transmission Characteristics * Are you a manufacture or a trading company?Sanyuan cable Company is a professional cable manufacturer with 23 years production experience. * Whether these products quality assures?Most of cables are certificated. Also, we have strict QC,all products are 100% tested before delivery.Quality is assured. * When I want customized products,how to do?We have Equipped with professional equipment,technicians & skilled employees, OEM & Customized service is welcome.Drawing/Samples are required. * Can you send a sample for us to test?1, If we have inventory and total amount is small,it's free.2, If we don't have inventory,sample and freight cost have to be paid by your esteemed company.But we will return the sample cost to you when we receiving your initial order. * If I want to purchase,how to pay?Generally we do T/T in 30% deposit before production,70% balance against copy of B/L.Also payment terms are negotiable depending on customer's request. * After I pay,what about the lead time and shipping method?Goods can be delivered by air,by express or by sea;International Express as FedEx,UPS,DHL,TNT;You can choose the best the best way as you wish.As for the Lead time,10~20 days.
>>
