Short-Range Perimeter Surveillance Radar for Airport Security and Surveillance

Product Description

Air Surveillance Radar
ASR 226X-1X3K-3D / X band

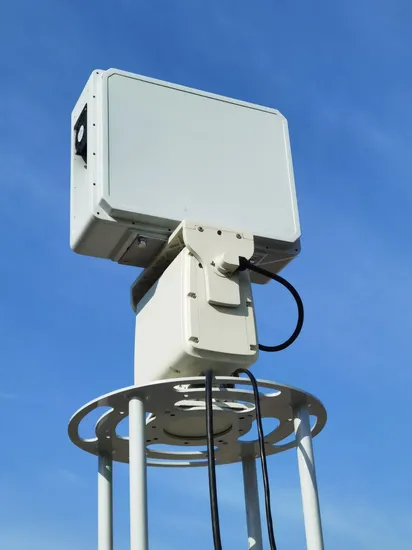

ASR 226X-1X3K-3D, security surveillance radar is mainly composed of radar array and turntable. It is used for detection, warning and target indication of micro / small civil UAV in key areas such as prison, exhibition and military base.
It can accurately give the target's azimuth,distance, altitude, speed and other track information.
Features
-- High data rate and high positioning accuracy
-- Multi-Input Multi-Output (MIMO) system
-- All-weather adaptability
Application
Airports, military bases, border areas and other key areas security surveillance
Specification

Item	Specification
Working mode Working system	Phased array + Pulse Doppler Pulse Doppler
Working frequency	X band
Detection range	≥ 3.5km (DJI Phantom RCS≈0.01m2)
Minimum detection range	≤150m
Azimuth coverage	0°~360°
Elevation coverage	0°~40°
Distance accuracy	≤10m
Azimuth accuracy	≤1.0°
Elevation accuracy	≤1.0°
Data rate	≥ 0.25 times/s
Power Consumption	≤240W
Power supply	AC220V-AC240V
Net weight	≤50kg
Interface	RJ45 / 1 way 100 MB Ethernet (UDP protocol)
Dimension	500mm X 410mm X 205 mm
Working temperature & Storage Temperature	-40 ºC ~ +55 ºC -45 ºC ~ +65 ºC
Working Environment	Rain-proof; Dust Prevention; Sand-prevention; Moisture- proof, Mould-proof and Salt-proof

For more details, please visit: a5250379796602ad.en.made-in-china.com
Factory preview
Project reference

---
