China Top Quality Level Rubber Vulcanizing Press with PLC Automatic Control System (CE/ISO9001)

Product Description

Name :Rubber vulcanizing press, Plate rubber vulcanizing press,Rubber vulcanizing machine,
Rubber curing press,Plate vulcanizing press,
Plate vulcanizing machine,Rubber hydraulic press.
Model No.: CX100b
Usage :The machine applies to vulcanizing various kinds of model rubber and plastic products as well as non-model products.
FEATURES: Full automatic control,safety follow CE conformity,longlife use and easy maintaince.
Mechanical system:

1. Using the finite element analysis, a design precision casting forming, high rigidity, long service life.

2. The deep hole processing, the hot plate drill by thickening and nitriding process, the use of high precision,, even the temperature distribution.

3. Numerical control equipment, to ensure accurancy, precision design with key parts for processing.

4. High-end adjustment plane technology, highest can make fluctuation hot plate parallel degree of 0.02mm

Oil line system:

1. The oil line is integrated design concept, reduce oil route, modular inpact and noise.

2. The safe and energy-saving design, improve efficiency, reduce energy consumption.

3. Special design of high speed loop, and makes speed fast acting as smooth transition, and can make any speed adjustment

4. Indenpendent exhaust circuit design, make the exhaust of 100%.

5. Using high quality hydraulic components, stable and reliable.

description:

The operators technique will not affect the quality of product produced by this machine.
It suits for rubber articals, thermosetting plastics (backlite) etc as well as special
products which have complicated process data (such as exhaust or mang times air exhaust midway exhaust) and need high quality.

feature:
the conversion speed of machine was speeding and the quantity of each mould is rising.
get rid of old-pressure gauge, the failure of machine reduced by 50%, the pressure can set on the computer plate directly, the precision can reach 0.1%
imported with original packaging computer, stable and reliable, and have many section of exhaust fuction
the height of the mould and the height of the exhaust can set on computer plate directly, and it was higher in precision and so convenient.
heated plate pre-heat fuction
store the whole technical parameters of 9999 sets molds and easy to operate.
the production has the automatic counting fuction(save if power failure)
special requires, the temperature of electric hot plate can control between +- 2. C
Parameters below :

Model	CX-100A	CX-100B	CX-160	CX-200	CX-250	CX-300	CX-400	CX-500
Mold-locking force(KN)	1000	1000	1600	2000	2500	3000	4000	5000
Max. working pressure(Mpa)	21	21	23	21	21	21	21	21
Heating plate size(mm)	450*450	500*500	520×540	520X540 or 600×600	600×600	700×700	800×800	1000×1000
Clamping stroke (mm)	250	250	250	250	300	300	400	500
Max.distance of two thermo-plate(mm)	400	400	420	420	430	400	700	700
Motor power(kw)	4+4	4+4	5.5+5.5	5.5+5.5	5.5+5.5	7.5+7.5	11+11	15+15

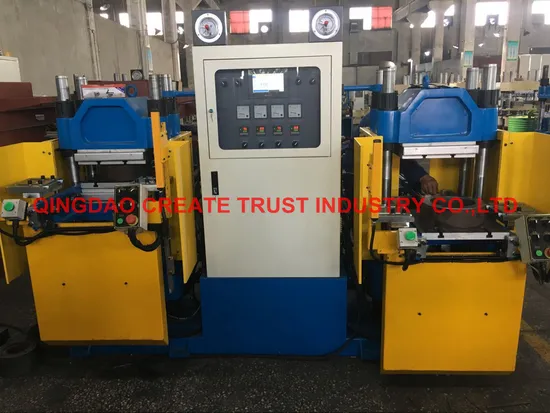

Front view :
Back view :
Parts general view:
Service of us
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !

---
