Gjxh Factory Price Drop Cable 2*5mm for Fiber Optic Solutions

Product Description

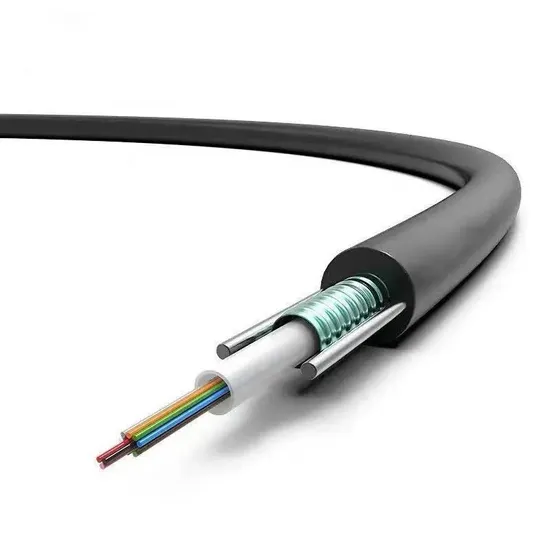

Product Description The FTTH Drop Cables are engineered with a flame-retardant cable jacket and integrated supporting wire, providing robust support for the entire cable structure. This ingeniously designed optical fiber cable features strengthened members, ensuring reliability and endurance. With a unique structure that facilitates effortless fiber extraction, these cables are superb for direct installation into residential and commercial spaces, making them particularly advantageous for homes and offices. Product Parameters Specification: OEM/ODM, perfect for both Outdoor and Indoor applications, available in 1/2/4/8... Cores. Materials include Steel Wire, FRP, and KFRP. Lengths available: 1M, 1KM/ROLL, 2KM/ROLL, 3KM/ROLL, and 4KM/ROLL.

Item	Technology parameter
Cable type	Drop Cable
Cable Count	1 2 4 6 8 12
Fiber color	Blue/Orange....
Fiber type	9/125 (G657A1/G657A2)
Sheath color	Black and white
Cable dimension (mm)	3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
Cable weight (Kg/km)	19
Operation temperature ()	-20~+70

strength member	material	Galvanized steel wire/FRP/KFRP
	diameter	2*(0.45~0.8)mm
Self support Messenger wire	material	Galvanized steel wire
	diameter	1.0mm
Outer sheath	material	LSZH
	diameter	1.8±0.2mm
Cable size (Height * width)	2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness	Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness	0.5~0.7mm
Cable weight	1~2core	18.2KG
	4-6 core	18.5KG

Packaging & Shipping Installation Instructions This product is suitable for both indoor and duct applications. It allows for easy jacket removal without specialized tools. Its self-supporting structure boasts excellent resistance to crush and impact. The flame-retardant LSZH jacket enhances safety. The ITU-T G.657 fiber is available, offering choices from 1 to 8-fiber counts. Company Profile Beijing Tianyuan Rongli Technology Co., LTD. is proud to be a leader in the industry, consistently delivering cutting-edge communication solutions for your needs FAQ

---
