PP Spunbond Nonwoven Fabric Making Machine in High Efficiency

Product Description

Name: PP Spunbond Nonwoven Fabric Making Machine
Dongyang Aolong Nonwoven Equipment Company is one professional manufacture of PP spunbond nonwoven fabric machine,we make machine design,procession,install,technical reform of the production line.

1.Equipment Introduce : PP Spunbond Nonwoven Fabric Making Machine
The PP nonwoven fabric making machine material is PP(polypropylene),masterbatches.also can add additive to low the fabric cost.The machine model including:S,SS,SSS,SMS,SMMS and SSMMS model.the common size is 1.6m,2.4m,3.2m.we can make different size as customer special request.At now,we already successful installed Chinese biggest one machine of 4.2m SS model in Brazil and 4.0m SS model in Korea.Our factory also make PET needle punching prodution line.such as needle punching carpet machine ,needle punching geotextile machine,needle punching machina and so on.

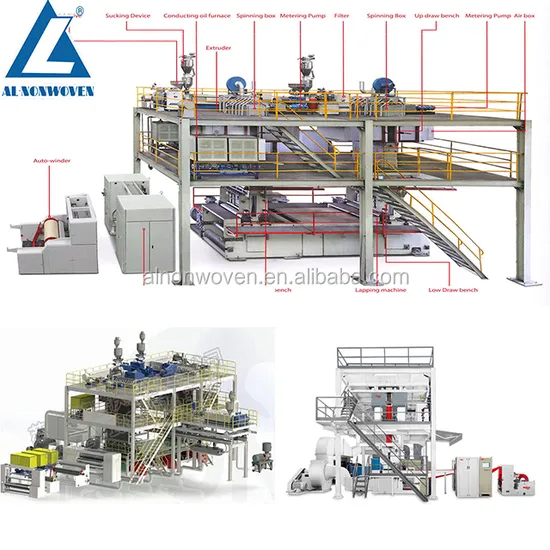

2.Machine main parts of PP Spunbond Nonwoven Fabric Making Machine
1)Auto-feeder machine
2)Color patch feeder
3)Main extruder
4)Recycle extruder
5)Metering pump
6)Spinning system
7)Monomer suction
8)Web forming machine
9)Calender
10)Winding machine
11)Winding and slitting machine
12)Air cooling blower
13)Suction blower
14)Water pump
15)Carrier
16)Hot oil circular pump
17)Heating of extruder
18)Heating of pressure roller
19)Oil heater
20)Air compressor
21)Calcinator machine
22)Ultrasonic cleaning machine
23)Workshop lighting

3. Main Technical Data for PP Spunbond Nonwoven Fabric Making Machine

Model	Annual capacity	Fabric GSM	Consumption	Machine size
1.6m S	1500T	9-250g	130KW	15*10*13m
2.4m S	2400T	9-250g	180KW	16*10*13m
3.2m S	3200T	9-250g	200KW	18*10*13m

1.6m SS	3000T	9-250g	200KW	20*15*13m
2.4m SS	4800T	9-250g	250KW	20*15*13m
3.2m SS	6400T	9-250g	300KW	20*15*13m
1.6m SMS	3500T	15-250g	400KW	30*20*13m
2.4m SMS	5000T	15-250g	600KW	30*22*13m
3.2m SMS	6500T	15-250g	800KW	30*23*13m

Packing and linning: Shopping bag, rice bag, dust cover, hotel slipper...
Agricultural: cover for plant to anti-frost, insect resistant sunshades, awnign clothes, packing bags for crops...
Medical and Health: operation sult, exposuresuit, cap, mask, massage cloth, baby diaper, adhesive tape...Additives (scrap recovery) ----> Raw Materials ----> Melt Extrusion ----> Filter ----> Metering Pump ----> spinning Box----> Cooling ----> Strenching Machine ----> Web Forming Machine----> Calender Machine----> Winding Machine----> Slitting Machine
