Overpowering Speed Controller for RC Cars ESC Radio Controlled Accessories

Product Description

For RC Car Electronic Speed Controllers, We Are Serious.
Brushless, sensored, built-in Bluetooth and mobile App, for best experience.
XC-ESC combines design, manufacture and sales, providing you with superb product and after-sales service.
Description
XC-E5 rc car electronic speed controller (rc car ESC), packed with a potent combination of hardware and unique software, with power system of 6-12S 200A is engineered to power enthusiasts' RC cars and trucks, pushing RC limits to next level with evolution and innovation.
Powerful System
With 6-12S LiPo batteries, up to 200A continuous current power system, this brushless electronic speed controller (rc car ESC) can handle anything the motor pours out, and you will be able to do any stunt to show your skills.
Adjustable BEC
Built in powerful DCDC conversion circuit provides potent loading capacity for BEC. BEC provides 6.0V, 7.4V, 8.4V options and 8A continuous current, 25A peak, select the one that is suitable for servo.

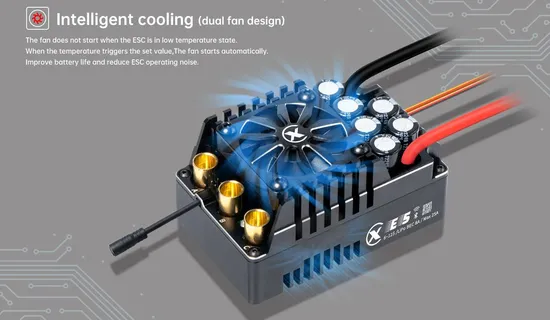

Smart Thermal Dissipation
Equipping with combination of a 60mm fan and Al alloy forged heatsink, E5 brushless rc car electronic speed controller can maximize air flow through the system, bringing your RC cars or trucks to top performance while remaining brushless electronic speed controller (rc car ESC) "cool".
The fan is controlled intelligently by brushless electronic speed controller (rc car ESC). When temperature exceeds 55 Celsius degrees, the fan will be turned on; when temperature drops below 50 Celsius degrees, the fan will be turned off. This will help save energy and reduce noise.
IP67 Waterproof
E5 brushless rc car electronic speed controller (rc car ESC) is potted with modified epoxy for waterproof and heat transfer with excellent durability, allowing you to drive RC cars or trucks in any weather and terrain conditions. Enjoy driving! Enjoy ultimate handling experience.
Built-in Bluetooth Communication and Mobile App
Comparing with the established brands of electronic speed controllers, XC technology tends to innovate and bring revolutionary changes to RC field. XC technology is the first one to integrate Bluetooth into brushless electronic speed controller (rc car ESC). Connecting to Mobile App, static data (ESC records) and real-time running data will be monitored. Everything is under control.
Parameter setting and firmware upgrade can be managed on the Mobile App through Bluetooth communication. No Need of Additional Modules for Programming and Data Log.
Specification of E5 Electronic Speed Controller RC Car ESC:

Model NO.	E5	Motor Type	BLDC Sensored/Sensorless
Current	200A continuous	Motor Speed	240000 electric speed
Cell	6-12S LiPo	Bluetooth	Built-in
BEC	8A, 6.0V/7.4V/8.4V	Mobile App	Available for parameter setting
Cooling Fan	Auto turn on/off	Turbo Timing	Available
Waterproof	IP67 Rating	On-line Upgrade	Available
Protection	Over voltage, Low voltage, Over temperature, Throttle loss etc.
Weight	425g (with wire)	Dimension	93.80*59.00*50.60mm

Specification of Electronic Speed Controller 1/5 ESC for RC Cars and RC Trucks:

	Item	Description				Default
1	Running mode	Forward with brake	Forward&Reverse and Brake	Forward with reverse		Forward&Reverse and Brake
2	LipoCells	Auto	6-12S
3	Cutoff Voltage	Disabled	2.8V	3.1V	3.2V	3.1V
4	Motor Rotation	Forward	Reverse			Forward
5	BEC voltage	6.0V	7.4V	8.4V		6.0V
6	Max.Brake Force	0~100%				60%
7	Max.Reverse Force	0~100%				25%
8	Punch	0-12 level				6th
9	Drag Brake Force	0-100%				0
10	Turbo Timing	0-26 degree				26 degree
11	Turbo Delay	0-1s				1s
12	Initial PWM	0-10%				1%

XC-E5 rc car electronic speed controller (rc car ESC) is engineered for 1/5th scale RC cars and trucks with a compact combination of hardware and unique software, waterproof IP67 rating. Built-in Bluetooth communication and Mobile App programming will provide you with flexible user experience and help you control rc car ESC completely without need of additional modules.
With 6-12S LiPo batteries, up to 200A continuous current power system, this brushless electronic speed controller (rc car ESC) can handle anything the motor pours out, and you will be able to do any stunt you dream of.
No need to worry about burning out, multi-protection includes over current, over temperature, low voltage and short circuit. Especially the wave-by-wave current limiting will protect the motor and power system.
Usage
Effortlessly enhance the performance of your RC cars and trucks with the XC brushless electronic speed controller (rc car esc). Simply install the ESC following the provided instructions, adjust settings via Bluetooth connectivity for personalized performance, and enjoy the thrilling experience of driving your RC vehicles at their full potential.
Maintenance
Routine maintenance ensures prolonged usability and optimal functionality, allowing users to focus solely on enjoying the excitement of RC hobbies without worrying about technical complexities.

---
