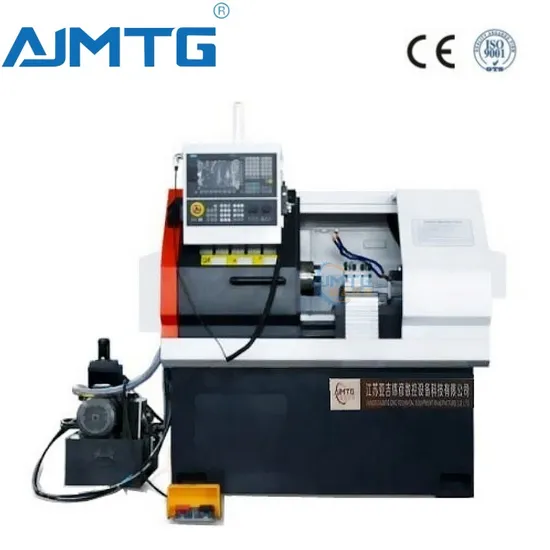

CNC Lathe Machine Ck32L Slant Bed with GSK/Siemens/Fanuc CNC Controller

Product Description

Hello dear friends, many CNC machines exported to Russia, warmly welcome esteemed you for inquiry or putting forward your questions~~~
Product Name: Well-sold TCK46A CNC lathe
(1). Brand machine with the 45° Overall high strength cast iron slant bed, smooth chip removal, good rigidity.
(2. )Have the function of tool nose radius compensation, constant speed cutting, chamfering, fixed cycle, thread cutting, etc...
(3). High speed spindle unit(3000rpm).
(4). Precision high-rigidity linear rolling guide.

Description	Unit	CKS6140X
Max.swing over bed	mm	450
Max.swing over carriage	mm	200
Max.workpiece length	mm	650
Travel for X axis	mm	220
Travel for Z axis	mm	660
Positioning accuracy for X,Z	mm	X:0.01;Z:0.01
Re- Positioning accuracy for X,Z	mm	X:0.001;Z:0.0005
Rapid feeding	mm/min	1500
Tool numbers	PCS	6/8
servo motor of spindle	KW	7.5
Max.spindle speed	r/min	3000
Spindle bore	mm	60
Spindle taper	MT	No.5
Size of square shank tool	mm	20×20
Interior diameter tools	mm	25
Overall dimension	mm	2717×1580×1870
Weight	KG	3500

---
