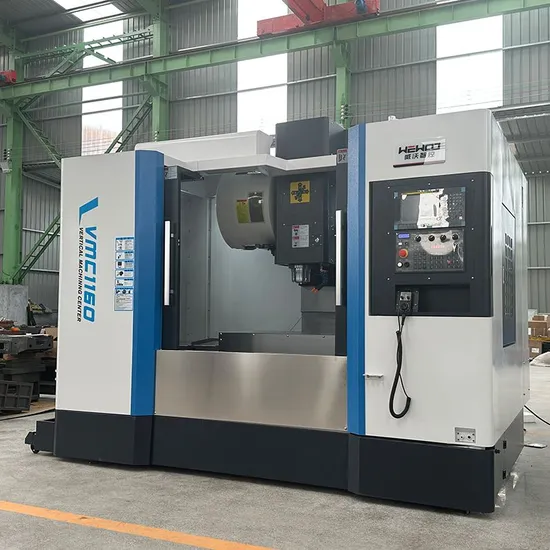

Good Quality Vertical Machining Center Vmc1160 Precision Metal Cutting Milling Machine

Product Description

Good Quality vertical machining center Vmc1160 Precision Metal Cutting milling machine
Product Description
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the WEWOO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the WEWOO MACHINE.
Certifications

Specifications	Units	VMC1160
Table size	mm	1200x600
X axis travel	mm	1100
Y axis travel	mm	600
Z axis travel	mm	600
Max. worktable load	kg	800
T slot(number-width-pitch)		5-18x100
Max. spindle speed	rpm	8000(Optional:10000 )
Spindle taper	mm	BT40
Main motor power	kw	11/15
X/Y/Z rapid traverse speed	m/min	24/24/20
Cutting feed speed	mm/min	1-8000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	650
Distance between spindle nose and worktable surface	mm	120-720
Positioning accuracy	mm	±0.0075
Repeat positioning accuracy	mm	±0.005
Tool magazine		Arm 24
Max. tool diameter	mm	φ78( Adjacent)/ φ120(Apart)
Max.tool weight	kg	8
Machine weight	kg	6800
Overall dimension	mm	3400*2500*2960

Introducing the Jiangsu Wewoo Advanced Vertical Machine Center Vmc1160 with 4 Axis/5 Axis Milling Machine, a cutting-edge solution designed to revolutionize the world of CNC machining. This state-of-the-art machine center combines precision, efficiency, and reliability to deliver unparalleled performance in the manufacturing industry.
Equipped with rectangular hardened sliding ways in the X-axis, Y-axis, and Z-axis, this machine center ensures exceptional rigidity and stability during operation. This feature, coupled with its high accuracy, allows for precise and intricate machining, guaranteeing superior quality results every time.
The Jiangsu Wewoo Advanced Vertical Machine Center Vmc1160 boasts impressive speed and efficiency, enabling swift and seamless production processes. With its large torque capabilities, it effortlessly handles heavy-duty machining tasks, making it an ideal choice for a wide range of applications.
This machine center is equipped with advanced 4-axis/5-axis milling capabilities, providing enhanced versatility and flexibility in machining complex geometries. Whether you require intricate 3D contours or multi-sided machining, this machine center delivers exceptional precision and accuracy, ensuring your products meet the highest standards.
Reliability is a key aspect of the Jiangsu Wewoo Advanced Vertical Machine Center Vmc1160. Built with robust components and cutting-edge technology, this machine center is designed to withstand the demands of continuous operation, minimizing downtime and maximizing productivity.
In addition to its impressive technical specifications, this machine center is also designed with user convenience in mind. Its intuitive interface and user-friendly controls make it easy to operate, even for those new to CNC machining. This ensures a seamless transition and allows operators to quickly adapt to the machine's capabilities.
Investing in the Jiangsu Wewoo Advanced Vertical Machine Center Vmc1160 means investing in the future of your manufacturing processes. With its high rigidity, high accuracy, high speed, high efficiency, high reliability, large torque, and wide machining capabilities, this machine center is the ultimate solution for precision machining needs. Experience the power of advanced CNC technology and take your production capabilities to new heights with the Jiangsu Wewoo Advanced Vertical Machine Center Vmc1160. Detailed Photos
TAIWAN PRECISION SPINDLE
1. Spindle taper is BT50;
2. Spindle speed 6000rpm , can enlarge to 8000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
2. Brand: OKADA
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
CONTROL SYSTEM
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.
AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change

PNEUMATIC COMPONENTS
Provides precise control and repeatability to ensure high efficiency and stability of the process. It has the advantages of fast response speed, high control accuracy and low maintenance cost, so it has been widely used in machining centers
ELECTRICAL COMPONENTS
1. safety electrical components
2. quick plug as standard
3.Precision processing, high efficiency and stability
LEAD SCREW AND COUPLING
Taiwan precision lead screw.
1.Lead screw bearing use NACHI bearing,
2. Coupling R+W directly connected .
Company Profile

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )

---
